Single Board Computer



Full-size PICMG CPU card

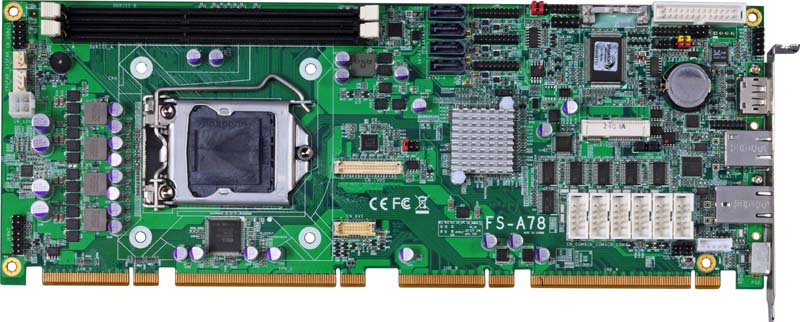

Support  4th generation  Intel® Core™ i7 / i5 / i3 / desktop CPU with
Intel® Q87 Express, DDR3/DDR3L up to 16GB, Onboard display port ,
VGA & DVI & LVDS, 2 x Giga LAN, 4 x USB 2.0, 6 x USB 3.0, 6 x COM,
HD Audio, 4 x SATAIIl with RAID, IrDA ,SMBUS,GPIO, 1 x Mini-PCIe .

FS-A78


Support  3rd and 2nd generation  Intel® Core™ i7 / i5 / i3 / desktop
CPU with Intel® Q77 Express, DDR3 up to 16GB, Onboard VGA & DVI,
2 x Giga LAN, 4 x USB 2.0, 4 x USB 3.0, 6 x COM, HD Audio, 4 x SATAII
& 2 x SATAIIl with RAID,GPIO, 2 x Mini-PCIe .

FS-A76

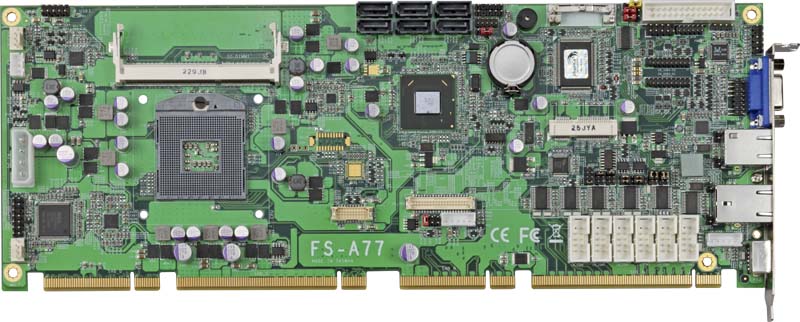

Support 3rd and 2nd generation Intel Core i7 / i5 / i3 Mobile CPU
with Mobile Intel QM77 Express, onboard VGA, DVI, LVDS,
16 GB DDR3,2 x Giga LAN, 4 x USB 2.0, 4 x USB 3.0, 6 x COM,
6 x SATA, HD Audio, LPT, GPIO , SMBUS, IrDA, LPC, Mini-PCIe socket

FS-A77

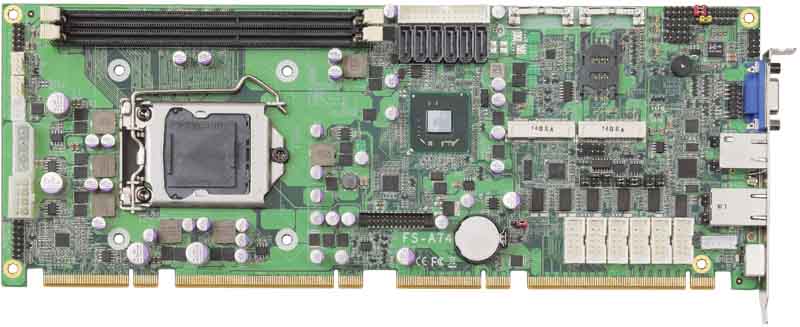

PICMG 1.3 CPU Card supports desktop Intel® Core i7 / i5 / i3
2nd generation Intel® Core™ i7 / i5 / i3 Desktop processor
in LGA 1155/Intel® Q67 Express chipset, DDR3 1066/1333 MHz up
to 16 GB,Support VGA, DVI, HD audio, 2 x Intel® Giga LAN,
1 x SIM,1 x RS232/422/485, 5 x RS232, 8 x USB2.0, LPT,
8-bit GPIO, SMBUS,2 x Mini-PCIe sockets, 6 x SATA with RAID

FS-A74


PICMG 1.3 Supports 2nd generation mobile Intel Core i7/i5/i3
2nd generation Intel Core i7 / i5 / i3 Mobile processor
in PGA 988B,Mobile Intel QM67 Express chipset, DDR3 800/1066
MHz up to 16 GB,Support VGA, LVDS, Display port, HD audio,
2 x Intel Giga LAN,1 x RS232/422/485, 5 x RS232, 8 x USB2.0,
LPT, 8-bit GPIO, SMBUS,Mini-PCIe sockets, 6 x SATA with RAID

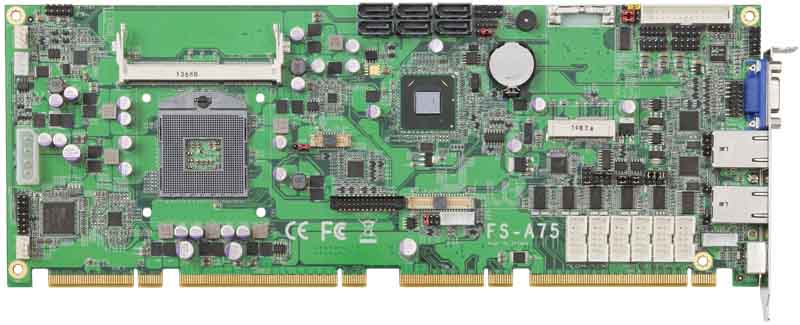

FS-A75

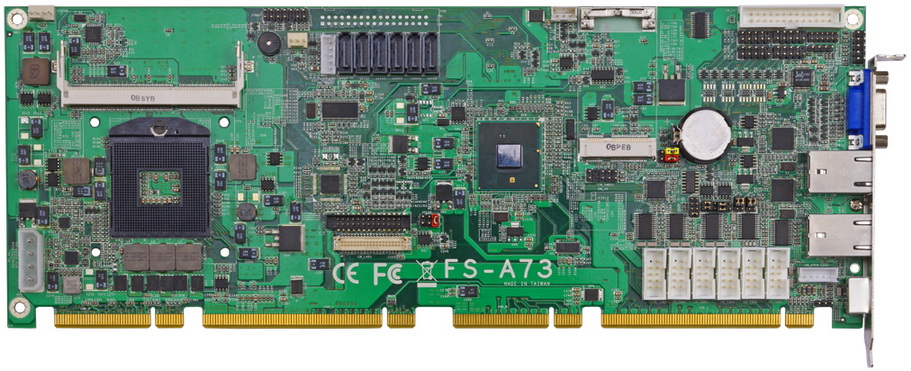

PICMG 1.3 CPU Card supports mobile Intel® Core i7 / i5 / i3

Intel® Core™ i7 / i5 / i3 Mobile processor
Mobile Intel® QM57 Express chipset, DDR3 800/1066 MHz
up to 8.0 GB,Support VGA, 24-bit LVDS, DVI, HD audio,
2 x Intel® Giga LAN,1 x RS232/422/485 , 5 x RS232 ,
8 x USB2.0 , 6 x SATAII,Mini-PCIe socket , SMBUS ,
8-bit GPIO, LPT , IrDA

FS-A73

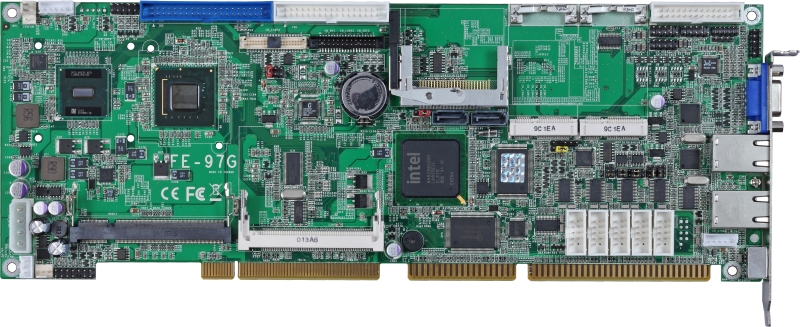

PICMG 1.0 CPU card supports Intel® Atom N270

Intel® Atom N270 ( 1.6 GHz ) processor @ 533 MHz FSB
Intel® 945GSE & ICH7M, DDR2 SO-DIMM up to 2GB, Onboard VGA,
18-/24-bit Dual Channel LVDS or DVI, 2 x Gbit LAN, AC97 audio,
1 x IDE, 2 x SATA, 6 x USB 2.0, 5 x RS232, 1 x RS232/422/485, 1 x LPT,
GPIO, HDTV, 1 x Mini PCIe, 1 x Mini PCI, 1 x Compact Flash Type II socket

FE-97G


PICMG 1.3 CPU Card supports Intel® Core 2 Quad / Core 2 Duo

Intel® CoreTM  2 Duo / CoreTM  2 Quad processor, 800/1066/1333MHz FSB
Intel® Q45 & ICH10DO chipset, DDRIII 800/1066MHz up to 4GB,
Onboard VGA, Onboard 2 x Intel® Gigabit LAN, 6 x SATA with RAID 0/1/5/10
RS232/422/485, USB 2.0, 8-bit GPIO, LPT, FDD, IrDA

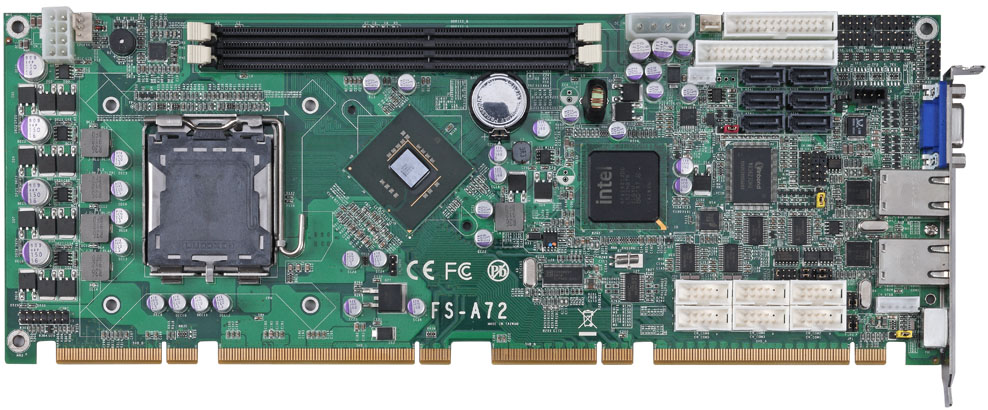

FS-A72


Full-size Intel Pentium 4 / Celeron CPU card , onboard VGA , INTEL GB LAN
PC/104 , Compactflash socket , Mini-PCI ,2 COM , 4 USB

特价TFB-845GV

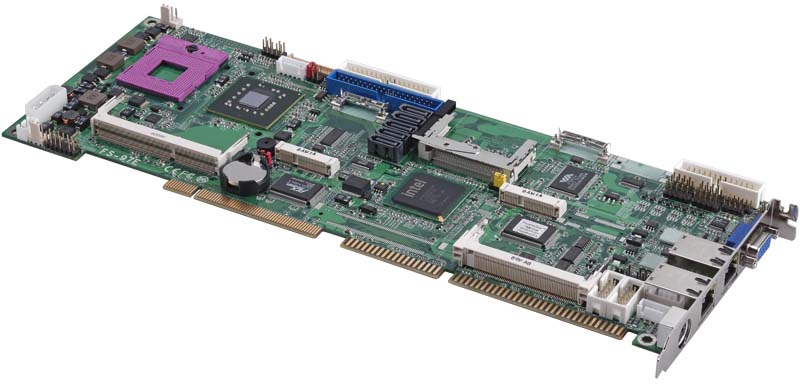

PICMG 1.0 supports Intel® Penryn CPU @ 1066 MHz FSB

Support Intel® Penryn CPU with FSB up to 1066MHz, Intel® GM45 & ICH9M,
DDRIII 800/1066 SO-DIMM up to 4GB, VGA, LVDS, IDE, 5 x SATA, HD Audio,
CF, GPIO, LPT, HDTV, IrDA, RS232/422/485, FDD, USB, SMBUS
1 x DVI (optional), 2 x Intel® Gigabit LAN (optional), 1 x Mini PCI (optional),
2 x PCI Express Mini Card socket (optional)

FS-97E


PICMG 1.0 support Intel® Core 2 Quad CPU @ 1333 MHz FSB

Intel® CoreTM  2 Duo / CoreTM  2 Quad, 800 / 1066 / 1333 MHz FSB
Intel® Q35 & ICH9DO chipset
DDRII 677/ 800 MHz up to 4.0 GB , Onboard VGA , Optional DVI or LVDS
2 x Intel Gigabit LAN , 6 x SATA with RAID 0/1/5/10
RS232/422/485 , USB 2.0 , 8-bit GPIO , LPT , FDD , IrDA , Mini-PCI

FS-97D

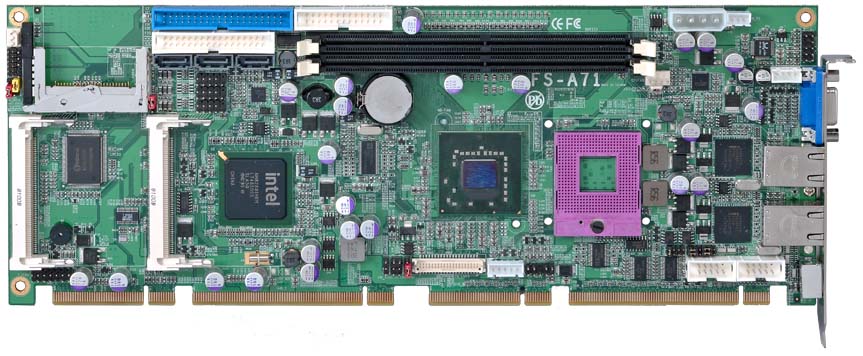

PICMG 1.3 CPU Card support Intel® Core 2 Duo mobile CPU
Intel® CoreTM 2 Duo ( Merom )processor @ 800 MHz FSB
Intel® GME965 & ICH8M , DDRII 533 / 677 MHz up to 3.0 GB
Onboard VGA 24-bit Dual Channel LVDS , 2 x Mini-PCI sockets
Onboard 2 x Intel® Gigabit LAN , HD Audio , CF socket
RS232/422/485 , 6 x USB 2.0 , 8-bit GPIO , LPT , FDD , IrDA

FS-A71

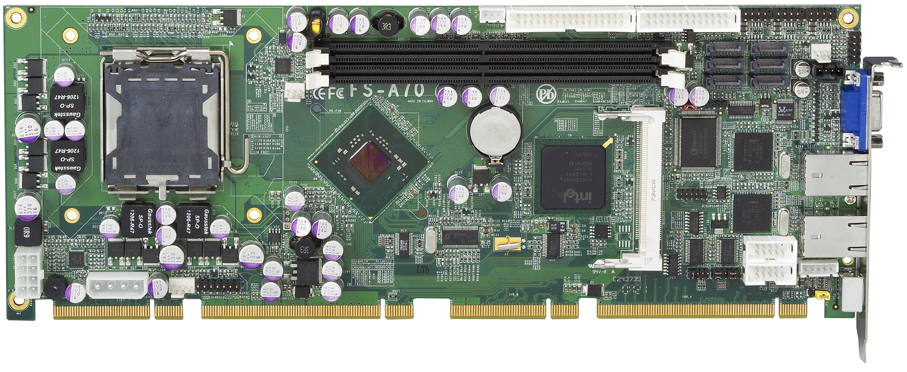

PICMG 1.3 CPU Card support Core 2 Quad / Core 2 Duo CPU
Intel Core 2 Duo/Core 2 Quad / Pentium D processor ,  533 / 800 / 1066 MHz FSB
DDRII 533 / 677/ 800 MHz up to 3.0 GB , Onboard VGA
Onboard 2 x Intel Gigabit LAN , 6 x SATA with RAID 0/1/5/10 RS232/422/485 , USB 2.0 , 8-bit GPIO , LPT , FDD , IrDA , Mini-PCI

FS-A70

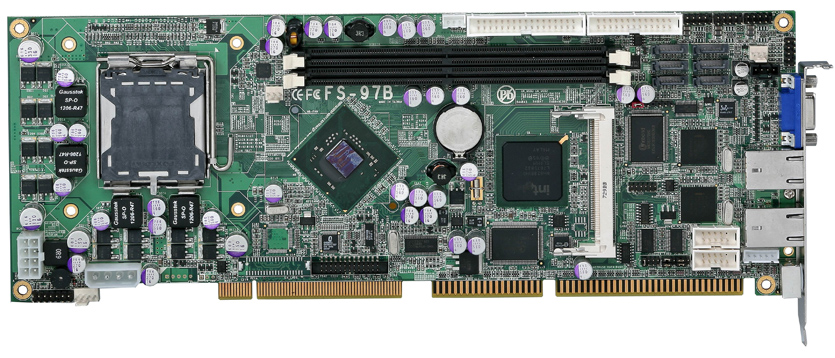

PICMG 1.0 CPU Card supports Intel® Core 2 Duo CPU

Intel® CoreTM  2 Quad / CoreTM  2 Duo processor , 533 / 800 / 1066 MHz FSB
Intel® Q965 & ICH8DO chipset
DDRII 533 / 667/ 800 MHz up to 4 GB , Onboard VGA
Optional 24-bit Dual Channel LVDS or DVI interface
Onboard 2 x Intel® Gigabit LAN , 6 x SATA with RAID 0/1/5/10
RS232/422/485 , USB 2.0 , 8-bit GPIO , LPT , FDD , IrDA , Mini-PCI

FS-97B

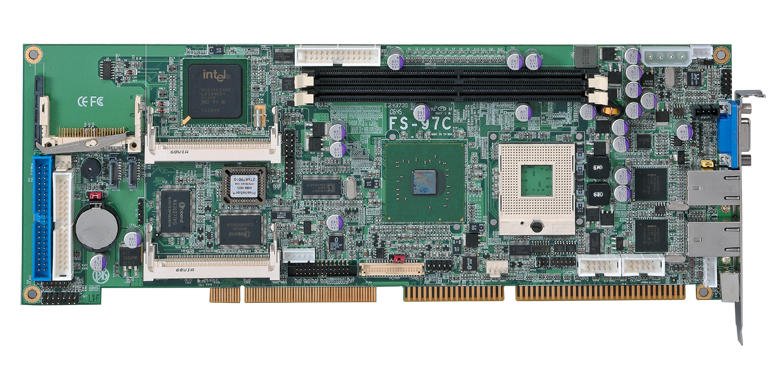

Intel CoreTM  2 Duo / CoreTM Duo processor , 533 / 667 MHz FSB
DDRII 533 / 677 MHz up to 3.0 GB , Onboard VGA
18-bit Dual Channel LVDS & DVI interface
Onboard 2 x Intel Gigabit LAN , 5.1 channel Audio
RS232/422/485 , USB 2.0 , 8-bit GPIO , LPT , FDD , IrDA
2 x Mini-PCI & CompactFlash socket

FS-97C


Intel LGA775 Pentium 4 Prescott processor-based running
up to 3.6+ GHz with Intel 915GV & ICH6R ,  4GB DDR2, 3x
Gigabit Ethernet port ,  4 x USB 2.0 , 2 x COM , 1 x SIR ,
AC97 3D Audio, 1 x Compact Flash Socket, 8-bit digital I/O,
1 x Parallel Port,4 x SATA, DVI Interface.

FS-979


Intel Pentium M & Celeron M  processor-based running
up to 2 GHz with Intel 855GME & ICH4, 2 GB DDR SDRAM,
100 Mbps & Gigabit Ethernet port ,  4 x USB 2.0, 2 x COM
1 x Printer Port, AC97 3D Audio, CompactFlash Interface,
8-bit Digital I/O, Mini-AGP socket, 24-bit LVDS

FS-97A


Full-size PICMG Socket 478 Pentium 4 DDR CPU Card

Intel 82865G & 82801EBChipset with ICH5, Support Intel Hyper-Threading

Intel Pentium 4 / Celeron CPU @ 400/533 MHz FSB

2x184 pin DDR DIMMs to support up to 2.0GB DDR SDRAM

Intel Extreme Graphics 2 with 256-bit 3D VGA

On board Intel 82547EI to support Gigabit Ethernet LAN, Optional Intel 82562ET 10/100Mb LAN

Built-in AC97 3D audio controller with ALC201A, Hi-Speed USB 2.0 Interface

Onboard Compact Flash Type-II socket on IDE1 and ISA 64mA High Drive

FS-978


Full-size PICMG Socket 478 Pentium 4 DDR CPU Card
Intel 845G Series Chipset with ICH4
Intel Pentium 4 / Celeron CPU @ 533/400 MHz FSB
2 GB DDR200/266 SDRAM
Intel Extreme Graphics with 266 MHz VGA Core and 256-bit 3D Engine
Onboard Optional Dual Intel PRO/100+ LAN
Hi-Speed USB 2.0 Interface with up to 480 Mbps Data Transfer Bandwidth
AC97 3D Audio, DiskOnChip and ISA 64mA High Drive Capacity

FS-977

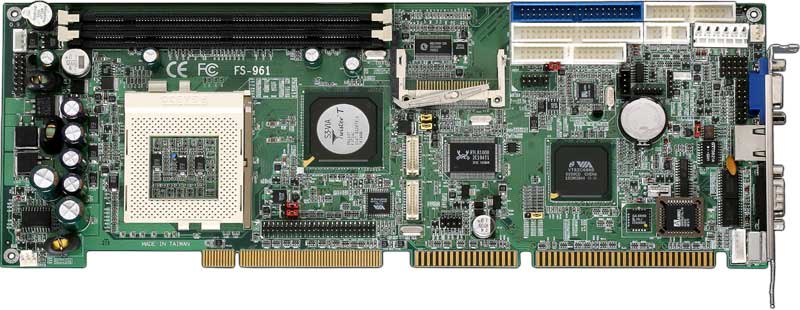

Intel Tualatin Pentium-III / Celeron, VIA C3 CPU @ 100/133 MHz FSB
1 GB SDRAM / ECC
Onboard 128-bit 3D Graphic Engine Chipset
with 36-bit LVDS/TTL Flat Panel / CRT SVGA with 8/16/32 MB VRAM
10/100Mbps LAN, AC97 3D Audio
CompactFlash  Interfaces
Onboard Optional AV/S-Video TV-out Interface

FS-961


Half-size CPU Card/Slot PC
Support  6th  generation  Intel® Core™ i7 / i5 / i3 H-series processor mobile CPU with Intel® QM170 chipset, onboard DidplayPort, VGA, LVDS & DVI, 32GB DDR4, 1 x Giga LAN 1 x Giga PHY LAN,  4 x USB 2.0, 4 x USB 3.0, 6 x COM, 3 x SATA3, HD Audio, GPIO , LPC,1 x Mini-PCIe socket , 1 x Half-Size Mini-PCIe socket .

HE-B72


Support 4th generation  Intel® Core™ i7 / i5 / i3 / and Celeron CPU with
Mobile Intel® QM87 Express, onboard DidplayPort, VGA, LVDS & DVI,
16 GB DDR3L, 2 x Giga LAN, 2 x USB 2.0, 4 x USB 3.0, 6 x COM,
4 x SATA3,HD Audio, GPIO , LPC,1 x Mini-PCIe socket (Optional support mSATA).

HE-B71


Support 3rd and 2nd generation  Intel® Core™ i7 / i5 / i3 / Mobile CPU with Mobile Intel® QM77 Express, onboard VGA, LVDS & DVI, 16 GB DDR3 2 x Giga LAN, 2 x USB 2.0, 4 x USB 3.0, 6 x COM, 4 x SATA, HD Audio, GPIO,1 x Mini-PCIe sockets.

HS-B70

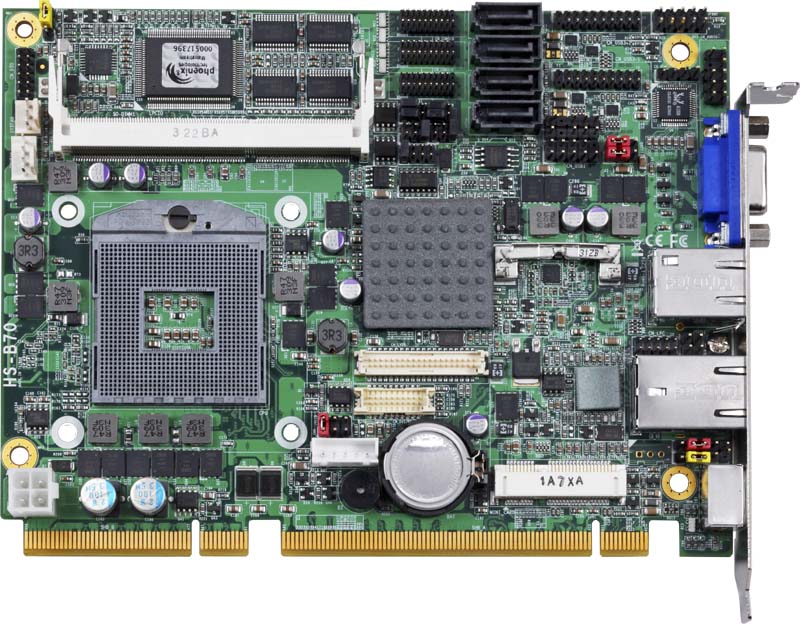

Support 3rd and 2nd generation Intel Core i7 / i5 / i3 / Mobile
CPU with Mobile Intel QM77 Express, onboard VGA, LVDS & DVI,
16 GB DDR3 2 x Giga LAN, 2 x USB 2.0, 4 x USB 3.0, 6 x COM,
4 x SATA, HD Audio, GPIO 2 x Mini-PCIe sockets, 1 x SIM card socket

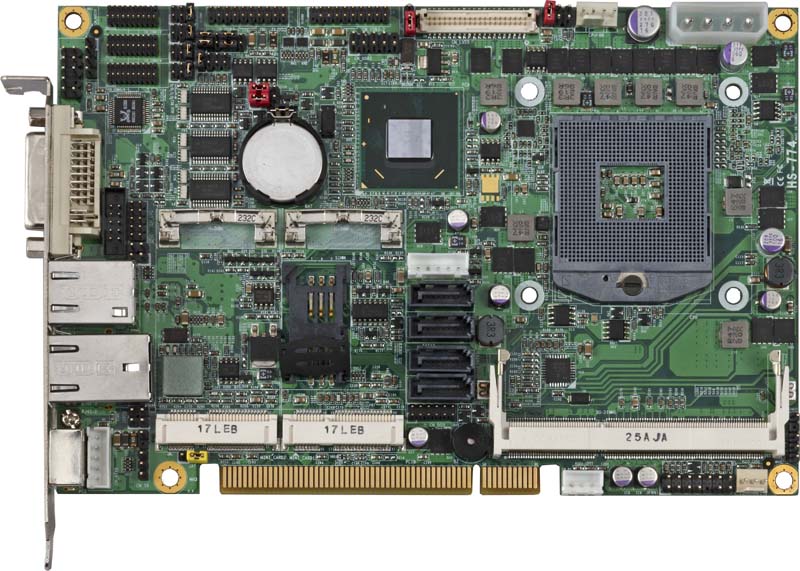

HS-774

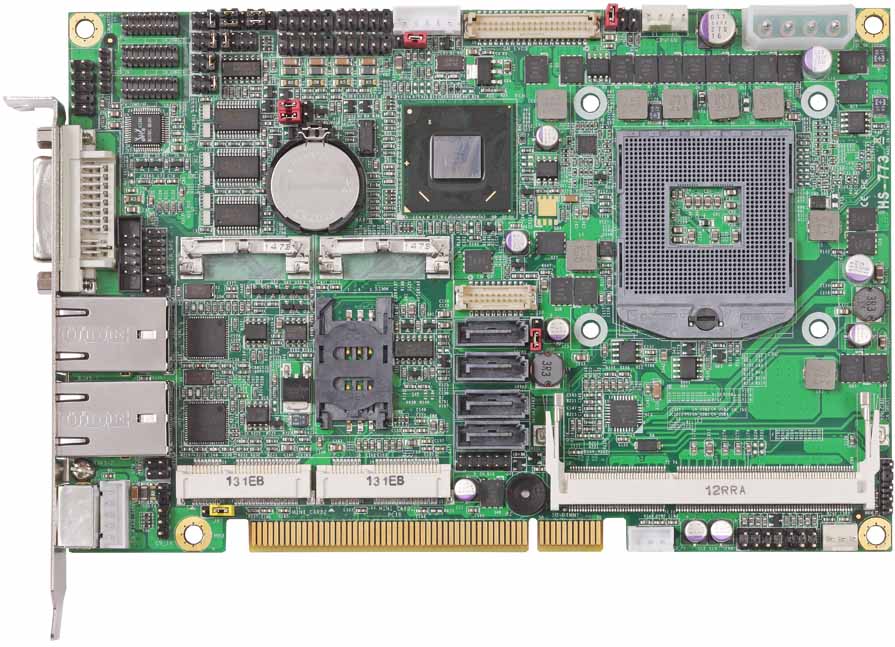

PCI-bus SBC support 2nd generation Intel® Core™ i7 / i5 / i3

2nd generation Intel® Core™ i7 / i5 / i3 Mobile processor in
PGA 988B,Mobile Intel® QM67 Express chipset, DDR3 800/1066 MHz
up to 16 GB,Support VGA, LVDS, Display port, HD audio,
2 x Giga LAN, 4 x SATA,1 x RS232/422/485, 3 x RS232, 8 x USB2.0,
SPDIF, 8-bit GPIO, SMBUS,2 x Mini-PCIe sockets ,
1 x SIM card socket

HS-773

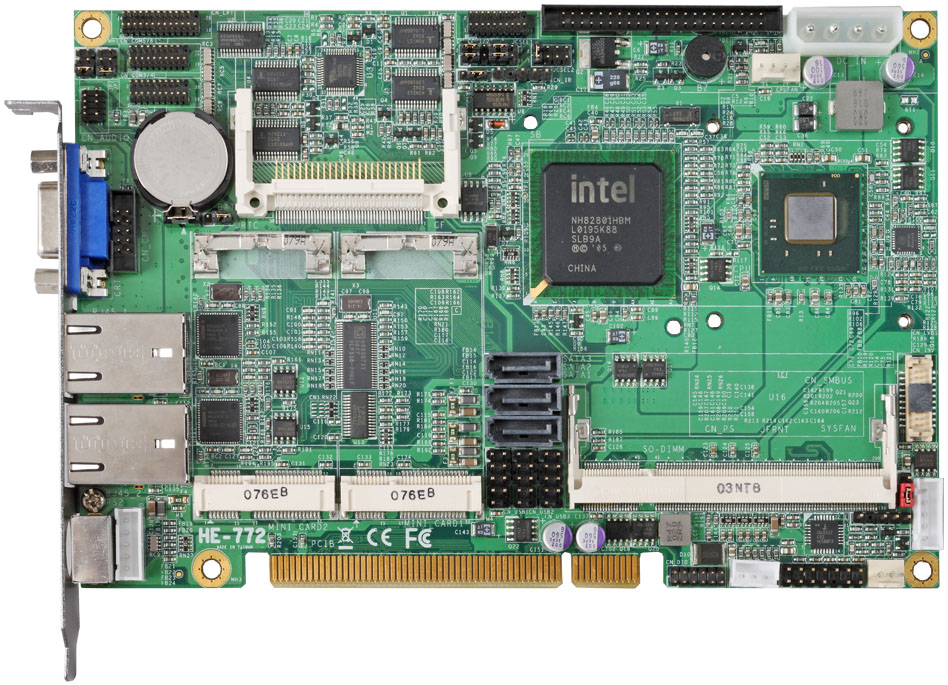

PCI-bus CPU Card for Intel® Atom Dual Core solution

Half-size PCI-bus
Intel® Atom D525 / D510 / D410 / N450 processor
DDR2 up to 2.0 / 4.0 GB , Onboard LVDS , VGA , 3 x SATA
2 x Intel® Gigabit LAN , 6 x USB 2.0 , 5 x RS232 , 1 x RS232/422/485,
LPT , GPIO , SMBUS , Mini-PCIe socket , Compact Flash Type II socket

HE-772

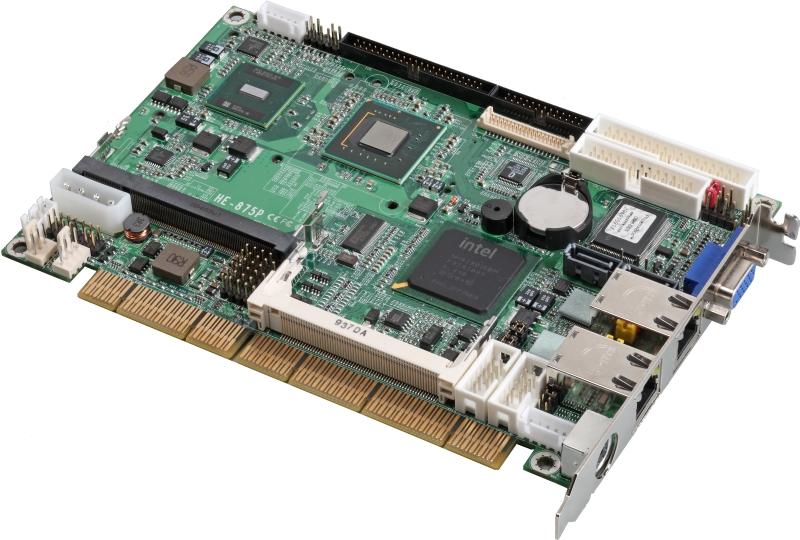

Intel® Atom PISA CPU Card

Intel® Atom N270 ( 1.6 GHz ) processor @ 533 MHz FSB
Intel® 945GSE & ICH7M , DDR2 SO-DIMM up to 2.0 GB , Onboard VGA ,
18-/24-bit Dual Channel LVDS or DVI , 2 x Gigabit LAN , AC97 audio ,
1 x IDE , 2 x SATA , 6 x USB 2.0 , 1 x RS232 , 1 x RS232/422/485, 1 x LPT ,
GPIO , HDTV , 1 x Mini-PCI socket , 1 x Compact Flash Type II socket

HE-875P

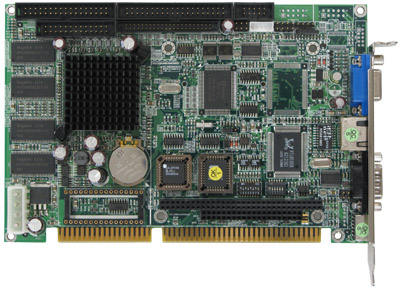

Half-size ISA-bus SBC with Onboard STPC up to 133 MHz

Half-size ISA-bus with low power SOC CPU
STPC Consumer-II Powerful X86 Core processor up to 133 MHz.
Onboard 32 MB SDRAM ( Max 256 MB), Winbond W83977G-A Super IO
Integrated 135 MHz triple RAMDAC support resolution up to 1280 x 1024 at 75 Hz
Realtek RTL8100B 10/100 bit/s Ethernet , 1 x Compactflash socket
1 x 16-bit PC/104 connector,1 x FDD , 1 x LPT , 1 x IrDA , 1 x DOC socket
1 x DB15 VGA port, 1 x COM, 1 x RJ45 LAN, 1 x PS/2 K/M, 4 x Serial port

特价FT-412


Intel® Penryn Half-size PISA CPU card

Half-size PISA CPU card, supports Intel® Penryn CPU with FSB up to
1066MHz, Intel® GM45 & ICH9M, DDRIII 800/1066 SO-DIMM up to 4GB
VGA, 18/24-bit dual channel LVDS, 3 x SATAII, HD Audio, 8-bit GPIO, LPT
HDTV, IrDA, PCI Express Mini Card socket, 1 x RS232, 1 x RS232/422/485
DVI (optional), 2 x Intel® Gigabit LAN (optional)

HS-873

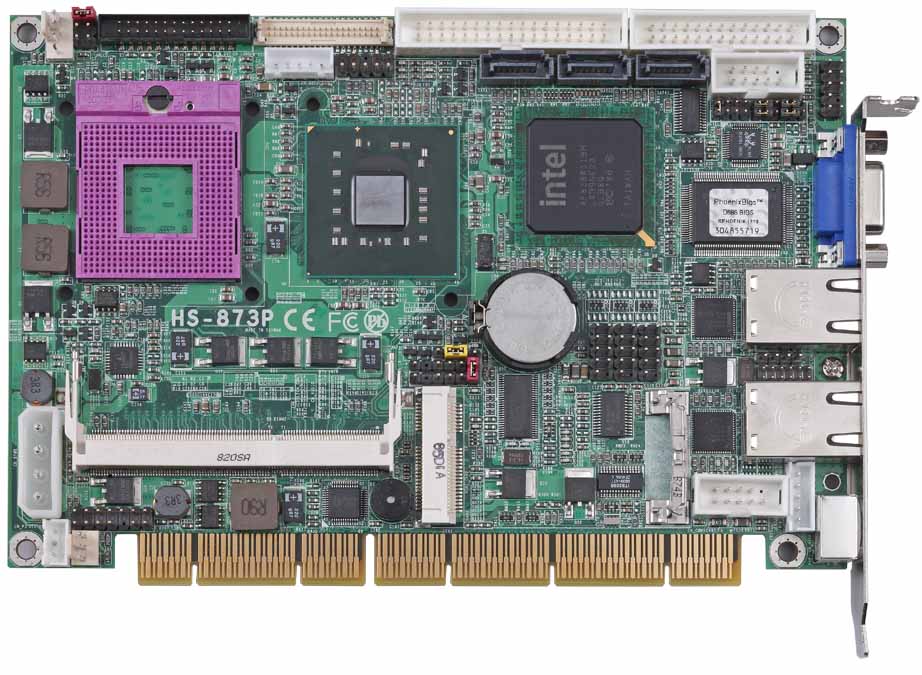

Half-size PCI-bus CPU card support Intel® Penryn CPU

Half-size PCI bus CPU card
Intel® CoreTM 2 Duo processor with socket-P @ 667/800/1066 MHz FSB
Intel® GM45 & ICH9M , DDR3 800/1066 MHz up to 4.0 GB
Onboard VGA , HDTV , 24-bit Dual Channel LVDS , DVI-I
Mini-PCI and PCI Express Mini card socket . 8-bit GPIO
Onboard 2 x Intel® Gigabit LAN , HD Audio , 2 x COM
4 x SATA , SMBUS , 8 x USB 2.0 ports

HS-771


Intel® Pentium M ISA CPU Card

Half-size ISA-bus Intel® Pentium M & Celeron M, processor-based running
up to 2 GHz with Intel® 855GME & ICH4, 1GB DDR SDRAM ,
Gigabit Ethernet port , 2 x USB 2.0 , 2 x COM , 1 x Printer Port
AC97 3D Audio , CompactFlash Interface , 8-bit Digital I/O,
24-bit Dual LVDS

HS-870S


Intel® ULV Celeron M 600 MHz ISA CPU Card

Half-size ISA-bus Onboard Intel® ULV Celeron M 600MHz
uFCBGA CPU with Intel® 852GM & ICH4, 1GB DDR SDRAM ,
Gigabit Ethernet port , 2 x USB 2.0 , 2 x COM , 1 x Printer Port
AC97 3D Audio , CompactFlash Interface , 8-bit Digital I/O,
24-bit Dual LVDS


HS-870SCM6

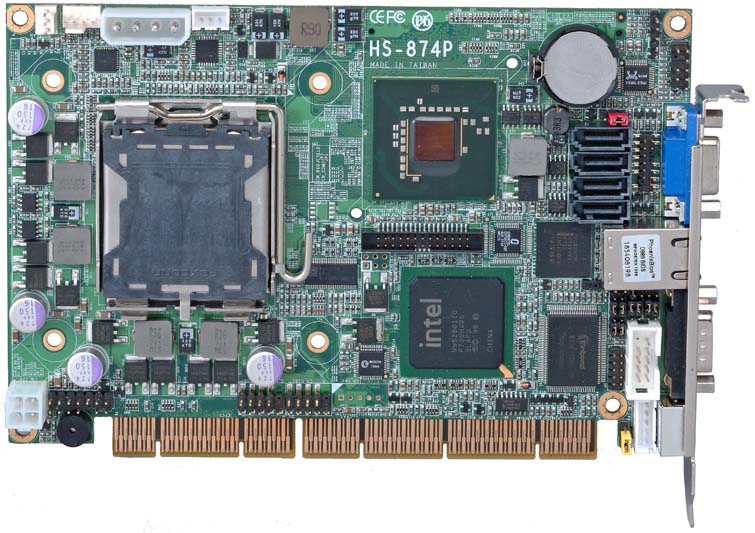

Intel® Core 2 Quad / Core 2 Duo PISA CPU Card

Intel® CoreTM 2 Quad / CoreTM 2 Duo Desktop , 800/1066/1333 MHz FSB
Intel® Q35 & ICH9DO , DDRII 667/800 MHz up to 2.0 GB
Onboard VGA , Optional DVI or 24-bit LVDS interface
Onboard 1 x Intel® Gigabit LAN , HD Audio , 4 x SATA with RAID
1 x RS-232/422/485 & 1 x RS232 , 4 x USB 2.0 , IrDA , GPIO

HS-874P

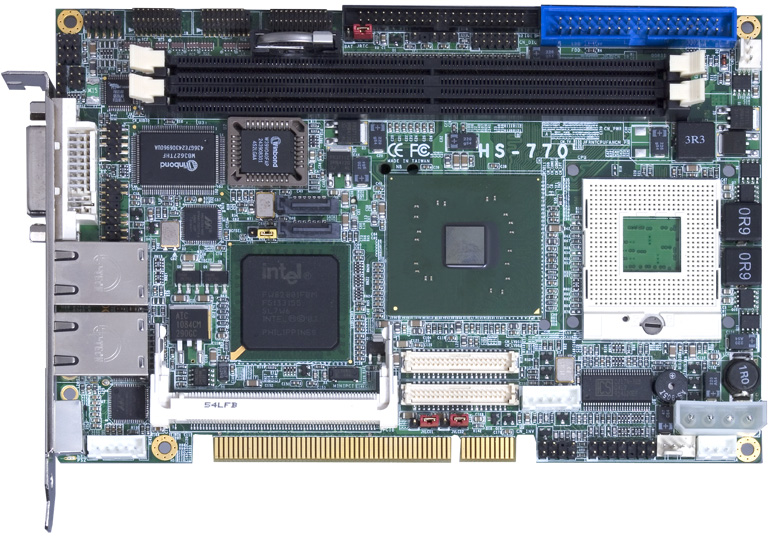

Intel Pentium M / Celeron M socket 478 .400/533
FSB , 2 x DDRII DIMMS , Onboard VGA  & LVDS
Support 24-bit LVDS ,Dual Gigabit LAN & SATA
3 x RS232 & 1 RS232/422/485 , Audio

HS-770


Half-size PCI-bus (Fanless)
Onboard VIA Eden 800MHz processor with 133 MHz FSB.
VIA CN400 & VT8237 chipset , 1 x DDR DIMM up to 1GB Optional Support 18/24-bit LVDS or DVI interface ,
Onboard Dual LAN and SATA. Support RAID 1/0 function. AC97 3D Audio , CompactFlash type-II & MiniPCI socket.
3 x RS232 & 1 x RS232/422/485 ports , 2 x USB 2.0 ports

HE-760


Intel CoreTM  2 Duo / CoreTM Duo processor , 533 / 667 MHz FSB
DDRII 533 / 677 MHz up to 2.0 GB , Onboard VGA
18-bit Dual Channel LVDS & DVI interface
Onboard 2 x Intel Gigabit LAN , 5.1 channel Audio
RS232/422/485 , USB 2.0 , 8-bit GPIO , LPT , FDD , IrDA
1 x Mini-PCI & CompactFlash socket

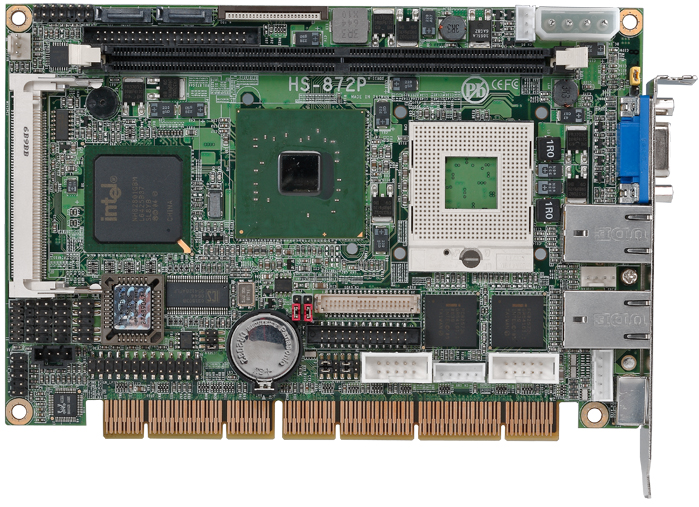

HS-872P


Half-size PISA-bus
Onboard Intel Mobile Celeron 1.2GHz 256KB cache  @400MHz FSB
uFCPGA CPU with Intel 82852GM & ICH4, 1GB DDR SDRAM ,
Gigabit Ethernet port , 2 x USB 2.0 , 2 x COM , 1 x Printer Port
AC97 3D Audio , CompactFlash Interface , 8-bit Digital I/O,
24-bit Dual LVDS

HS-871P


Half-size PISA-bus
Onboard Intel Celeron M 600MHz,  @400MHzFSB
uFCBGA CPU with Intel 852GM & ICH4, 1GB DDR SDRAM ,
Gigabit Ethernet port , 2 x USB 2.0 , 2 x COM , 1 x Printer Port
AC97 3D Audio , CompactFlash Interface , 8-bit Digital I/O,
24-bit Dual LVDS

HS-870PZ


Half-size PISA-bus
Intel Pentium M & Celeron M, processor-based running
up to 2 GHz with Intel 855GME & ICH4, 2 GB DDR SDRAM ,
Gigabit Ethernet port , 2 x USB 2.0 , 2 x COM , 1 x Printer Port
AC97 3D Audio , CompactFlash Interface , 8-bit Digital I/O,
24-bit Dual LVDS

HS-870P


Half-size PISA-bus
Intel Tualatin Pentium-III / Celeron, VIA C3 CPU @ 100/133 MHz FSB
Onboard 128-bit 3D Graphic Engine Chipset
with 18-bit LVDS/TTL Flat Panel / CRT SVGA with 8/16/32 MB VRAM
10/100Mbps LAN, AC97 3D Audio
CompactFlash, PC104 Interfaces

HS-862P


Half-size ISA-bus
Intel Tualatin Pentium-III / Celeron, VIA C3 CPU @ 100/133 MHz FSB
Onboard 128-bit 3D Graphic Engine Chipset
with 18-bit LVDS/TTL Flat Panel / CRT SVGA with 8/16/32 MB VRAM
10/100Mbps LAN, AC97 3D Audio
CompactFlash, PC104 Interfaces

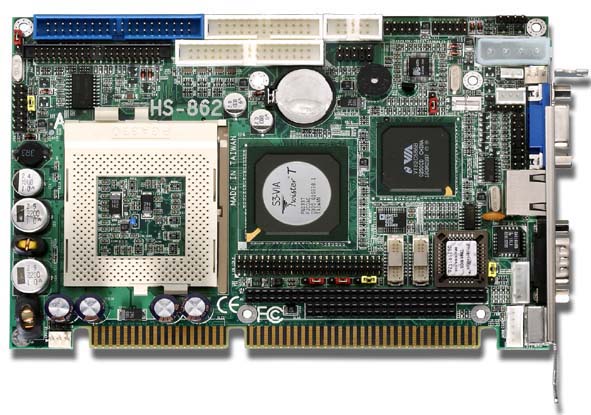

HS-862


Half-size PISA-bus Embedded VIA Eden CPU Card
Onboard Embedded VIA Eden 667/533 MHz CPU @ 133 MHz FSB
Onboard 3D SVGA with Optional TMDS Panel Link Interface
Onboard 10/100 Mbps LAN, AC97 3D Audio, DiskOnChip Interfaces
ISA 64mA High Drive Capacity

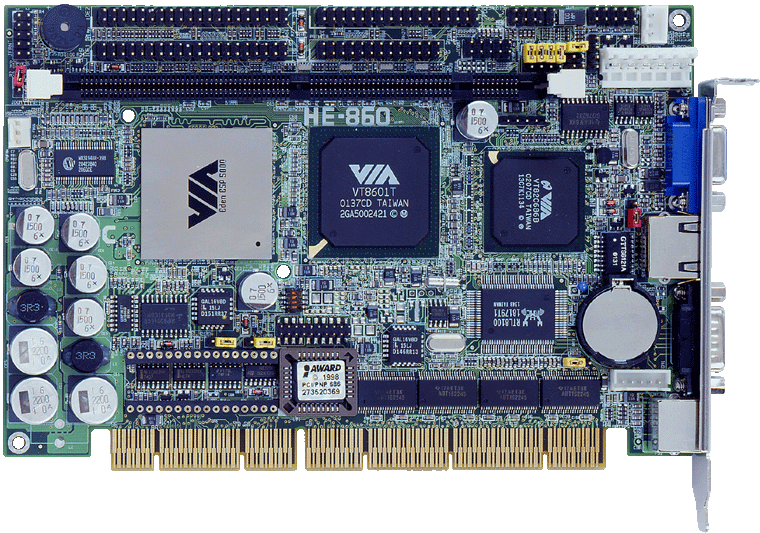

HE-860


Half-size ISA-bus Embedded VIA Eden CPU Card
Onboard Embedded VIA Eden 667/533 MHz CPU @ 133 MHz FSB
Onboard 3D SVGA with Optional TMDS Panel Link Interface
Onboard 10/100 Mbps LAN, AC97 3D Audio, DiskOnChip Interfaces
ISA 64mA High Drive Capacity

HE-860S


Half-size ISA-bus Embedded NS GX1 CPU Card
Embedded NS GX1 300 MHz CPU
Onboard 64 MBytes SDRAM (Low Profile)
Onboard Flat Panel / CRT SVGA with 4 MB Video Memory
Onboard LVDS/TTL Flat Panel Interface
Onboard PCI 10/100 Mbps LAN Interface
DiskOnChip, AC97 3D Audio, RS-422/845 and PC/104 Interface

HE-842


Embedded Miniboard 3.5"
Support Intel® 6th & 7th Gen Core  and Xeon® E3-1200 v5 Processor with Intel® C236 chipset, DDR4
up to 32 GB, Integrated VGA, DVI, Display port, LVDS, 1 x Giga PHY LAN, 1 x Giga LAN, 4 x USB 2.0,
4 x USB 3.0, 1 x RS232/422/485, 5 x RS232, HD Audio, 1 x PS/2, 2 x SATA3 with RAID, GPIO, LPC,
SMBUS, 1 x Mini-PCIe socket (support mSATA).

LS-37K


Intel® Apollo Lake Series Processor.
Onboard  HDMI, LVDS, Display port/VGA, HD Audio, Serial ATA3, USB3.0 & 2.0, Gigabit LAN,
PCIE Mini card, mSATA

LE-37H


Intel® Skylake / Kaby Lake (6th / 7th)  H-series Processor and Xeon® E3-1505M v6 Processor.
Onboard  HDMI, LVDS, Display port, DVI, CRT, HD Audio, Serial ATA3,4 x USB3.0, 4 x USB2.0, 2 x Gigabit LAN,
PCIe Mini card, mSATA

LE-37I


Intel® Skylake/Kaby Lake (6th/7th) U-series Processor.
Onboard  HDMI, LVDS, Display port/VGA, HD Audio, Serial ATA3, USB3.0 & 2.0, Gigabit LAN,
PCIe Mini card, mSATA

LE-37G


Intel® Braswell Series  Processor.
Onboard Display port, HDMI , LVDS, HD Audio, Serial ATA3, USB3.0 & 2.0, Gigabit LAN,
PCIE Mini card, mSATA

LE-37F


Intel® Broadwell (5th) / Haswell (4th) Core™ Mobile U-series  Processor.
Onboard Display port, HDMI , DVI , LVDS, HD Audio, Serial ATA3,
USB3.0 & 2.0, Gigabit LAN,PCIE Mini card, mSATA

LE-37E


Support Intel® Processor J1900/N2930/E3845 CPU with Onboard Display port, DVI, CRT,2 x LVDS, HD Audio, Serial ATAII, USB3.0 & 2.0, Gigabit LAN,PCIE Mini card, mSATA

LE-37D


Support  4th  generation  Intel® Core™ i7 / i5 / i3 / Mobile CPU with
Intel® QM87 Express, DDR3L SO-DIMM up to 8GB, Onboard Display
port ,VGA & DVI & LVDS,1 x Giga LAN, 2 x USB 2.0, 4 x USB 3.0,
2 x COM, HD Audio, GPIO, 2 x SATAIIl with RAID,  1 x SIM, 1 x CFAST,
2 x Mini-PCIe sockets.

LE-37C


Support  3rd and 2nd generation  Intel® Core™ i7 / i5 / i3
Mobile CPU with Mobile Intel® QM77 Express, DDR3 up to
8GB, 1 x Giga LAN, 2 x USB 2.0, 4 x USB 3.0 , 2 x COM,
2 x SATA, HD Audio,Mini-PCIe socket, DC 9 ~ 24V input

LS-37B


3.5"  Miniboard based on Intel Celeron Processor 807UE/827E/847E
Intel® HM65 Express Chipset with DDR3 SDRAM, VGA, 24-bit Dual
channel LVDS Interface, DVI, Giga LAN, 2 x COM , HD Audio, 6 x USB,
SATAIII , LPC, Mini-PCIE, GPIO, DC 9V~24V

LE-37A


Intel® AtomTM Processor D2550 or N2800, Onboard LVDS, VGA,
Giga LAN,USB2.0 HD Audio, SATA, PCIE Mini card & Mini-PCI socket,
DC 5V ~24V DC input

LE-379


Support 2nd Generation Intel® Core™ i7 / i5 / i3 Mobile processor
3.5" SBC support 2nd generation Intel® Core™ i7 / i5 / i3 Mobile
processor,Mobile Intel® QM67 Express chipset, DDR3 1066/1333
MHz up to 8.0 GB,Onboard VGA, LVDS, DVI, HD audio,
1 x Gigabit ethernet, 2 x SATAIII,1 x RS232/422/485, 1 x RS232,
6 x USB2.0, 8-bit GPIO, SIM socket ,2 x Mini-PCIe sockets ,
Full range DC 9V ~ 24V input

LS-378


3.5"  Miniboard based on AMD G-T56N 1.65GHz APU, & AMD A55E
Controller Hub,4GB DDR3 SDRAM, VGA, 18-bit single channel LVDS
Interface, DVI, Giga LAN,6 x COM , HD Audio, 6 x USB, SATAII , LPT,
Mini-PCI, Mini-PCIE, GPIO, DC 5V~24V

LE-380


3.5" SBC support Intel® Core™ i7 / i5 / i3 Mobile processor

Intel® Core™ i7 / i5 / i3 Mobile processor ( Dual Core )
Mobile Intel® QM57 Express chipset, DDR3 800/1066 MHz up to
4.0 GB,Support VGA, LVDS, DVI, HD audio, Intel® Giga LAN,
2 x SATA with RAID 0/1,1 x RS232/422/485, 1 x RS232,
6 x USB2.0, SPDIF, 8-bit GPIO, SMBUS,
Mini-PCIe & Mini-PCI sockets, Full range DC 9V ~ 24V input

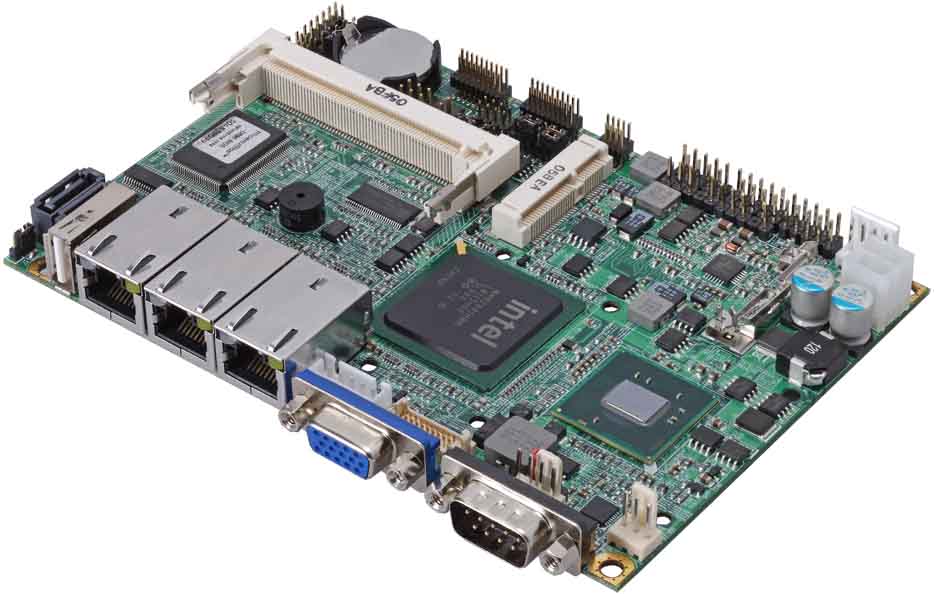

LS-377


3.5" embedded board for Intel® Atom™ dual-core solution

Onboard Intel® Atom™ D525/D510 dual-core or D410/N450
single-core processor/Intel® ICH8M system chipset
DDR2-667 SO-DIMM SDRAM up to 2.0 / 4.0 GB
Onboard VGA, LVDS, 3 x Intel® Giga LAN, HD Audio
6 x COM , 5 x USB2.0 , 2 x SATA , 1 x LPT , 1 x SMBUS
1 x PCIE mini card socket & 1 x Mini-PCI socket
DC 9V ~ 24V input

LE-376


Fanless 3.5" embedded board for Intel® Atom solution

Intel® AtomTM Z510P 1.1GHz processor @ 400MHz FSB
Intel® SCH US15WP, DDR2 up to 2GB, VGA, DVI, LVDS
Intel® Giga LAN, IDE, USB2.0, COM, HD audio
CompactFlash card, SD card, and PCIe mini card socket
Full range 9~24V DC input

LE-375


Embedded AMD GX1 with PC104 connector

3.5" Embedded AMD GXC1  Miniboard
Embedded Onboard AMD GX1 processor , AMD Geode CS5530 chipset.
1 x 144-pin SODIMM up to 256 MB, Geode GX1 Integrated 2D Technology
VGA Interface, 18-bit TTL TFT Flat Panel Support,
Onboard 10/100 Mbps LAN, USB 1.1 Interface
Onboard PC/104-plus and CompactFlash Interface

特价TES-534


3.5" embedded board for Intel® Atom solution
Intel® Atom N270 processor  @ 533 MHz FSB
Intel® 945GSE & ICH7M chipset
DDR2 up to 2.0 GB , DVI , LVDS and HDTV
Intel® Giga LAN , SATA , USB2.0 , COM
Compactflash and Mini-PCI socket , Audio
DC 9V ~ 24V inputs

LE-374


3.5" Intel® Core 2 Duo (Penryn) based on GM45 chipset

Intel® CoreTM 2 Duo processor with socket-P @ 667/800/1066 MHz FSB
Intel® GM45 & ICH9M , DDR3 800/1066 MHz up to 2.0 GB
Onboard VGA , HDTV , 24-bit Dual Channel LVDS
Mini-PCI and PCI Express Mini card socket . 8-bit GPIO
Onboard 2 x Intel® Gigabit LAN , HD Audio , SPDIF
RS232/422/485 , USB 2.0 , DC 12V input

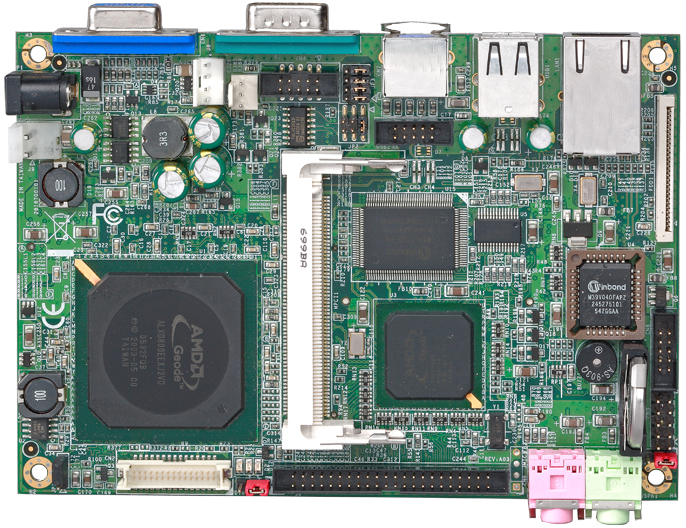

LS-373


3.5" Fanless Miniboard with AMD LX800 CPU

AMD Geode LX 800 process-based running at 500+ MHz
3.5" Miniboard based on AMD LX800 , CS5536,
DDR SO-DIMM up to 1.0 GB
18-bit LVDS , AC97 Audio , Giga LAN , 4 x USB2.0 , 2 x COM
GPIO , Mini-PCI socket, CompactFlash socket , DC 12V input.

LE-366


Intel® CoreTM 2 Duo (Merom) processor @ 800 MHz FSB
Intel® GME965 and ICH8M chipset
DDRII SO-DIMM up to 2.0 GB , Onboard VGA, TV-out / DVI
24-bit Dual Channel LVDS , 1 x SATAII , 1 x Mini-PCI socket
Onboard 1 x Intel Gigabit LAN , HD Audio ,SPDIF , RS232
USB 2.0 , 8-bit GPIO , CompactFlash socket , DC12V input


LS-372


Intel Core 2 Duo / CoreTM Duo / CoreTM Solo processor , 533 / 667 MHz FSB
Intel 945GME and ICH7M chipset
DDRII SO-DIMM up to 2.0 GB , Onboard VGA, DVI
18-bit Dual Channel LVDS , 2 x SATA
1 x Mini-PCI, Onboard 1 x Intel Gigabit LAN , 5.1 channel Audio
RS232/422/485 , USB 2.0 , 8-bit GPIO , IrDA, CompactFlash socket
8 V ~ 24 V Full range DC input

LS-371


3.5" Fanless Embedded Intel Celeron M Miniboard
Embedded Intel Celeron M 600Mhz processor with 400MHz FSB
Intel 852GM & ICH4 Chipset.DDR200/266 SDRAM up to 1GB
Onboard VGA, 24-bit Dual-channel LVDS Interface.
IDE1 support DOM with +5V power supply.
Onboard 5-pin LCD inverter connector and CompactFlash socket.
One Intel 10/100Mbps LAN , 2 x USB , RS232 and IrDA ports
Mini-PCI and Audio Interface.

LE-370Z


3.5" Embedded Intel Pentium M / Celeron M Miniboard
Intel Pentium M / Celeron M processor with 400/533MHz FSB
Intel 852GME & ICH4 Chipset.DDR266/333 SDRAM up to 1GB
Onboard VGA, 24-bit  dual channel LVDS Interface.
IDE1 support DOM with +5V power supply.
Onboard 5-pin LCD inverter connector and CompactFlash socket.
One Intel 10/100Mbps LAN , 2 x USB , RS232 and IrDA ports
Mini-PCI and Audio Interface.

LE-370


3.5" Fanless Miniboard with VIA Eden CPU.
Embedded VIA Eden 1.0G GHz CPU with 400 MHz FSB.
VIA CX700M Chipset
200-pin DDRII 400/533 SDRAM up to 1.0 GB
MPEG2 hardware accelerator integrated
Optional 18/24-bit LVDS or DVI interface
2 x Mini-PCI and CompactFlash socket interface
Giga LAN , 4 x USB 2.0 , 2 x COM . 2 x SATA
Full range 8 ~ 24V DC input

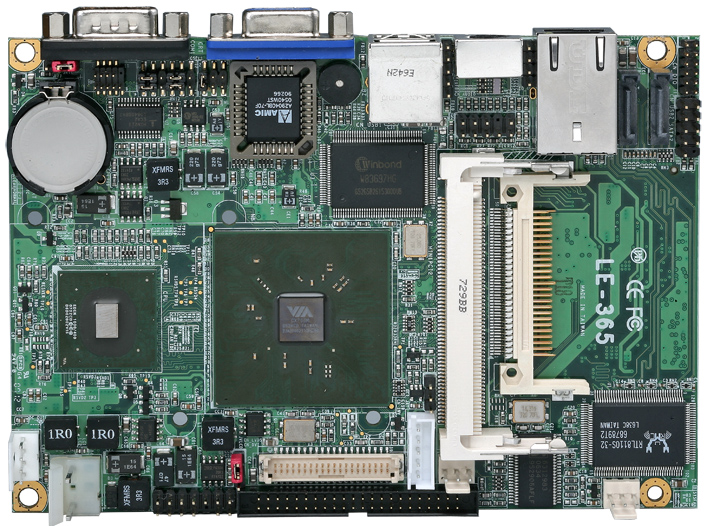

LE-365


3.5" Fanless Miniboard with VIA Eden CPU.
Embedded VIA 800MHz CPU with 133 MHz FSB.
VIA CN400 &VT8237 Chipset
184-pin DDR266/333/400 SDRAM up to 1GB
MPEGII/MPEG-4 hardware accelerator integrated
18/24-bit LVDS interface
Mini-PCI and CompactFlash socket interface
One 10/100Mbps LAN , 2 x USB 2.0 , 2 x COM

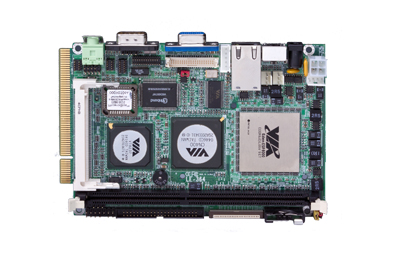

LE-364


3.5" Fanless Miniboard with AMD GX533 processor. (1.1w )
Onboard optioal 128MB DDR Memory and 1 x DDR SODIMM support up to 512MB. Support 18/24-bit TTL/LVDS interface . Dual 10/100Mbps LAN .
Mini-PCI & PCMCIA slots interface .
CompactFlash Type-I socket. IDE1 support 44-pin DiskOnModule
2 x RS232 , 2 x USB 1.1 , IrDA & 8-bit GPIO.
DC 12V Input.

LE-363


3.5" Embedded VIA Eden  Miniboard
Embedded VIA Eden 667 MHz CPU
Low Profile 144-pin SO-DIMM Socket, onboard optional PC-133 128 MB SDRAM
Onboard Flat Panel / CRT SVGA /S-vedio TV-out interface
Onboard 10/100 Mbps LAN, USB 2.0 Interface
Onboard 3D Audio Interface
Onboard PC/104-plus and CompactFlash Interface

LE-362

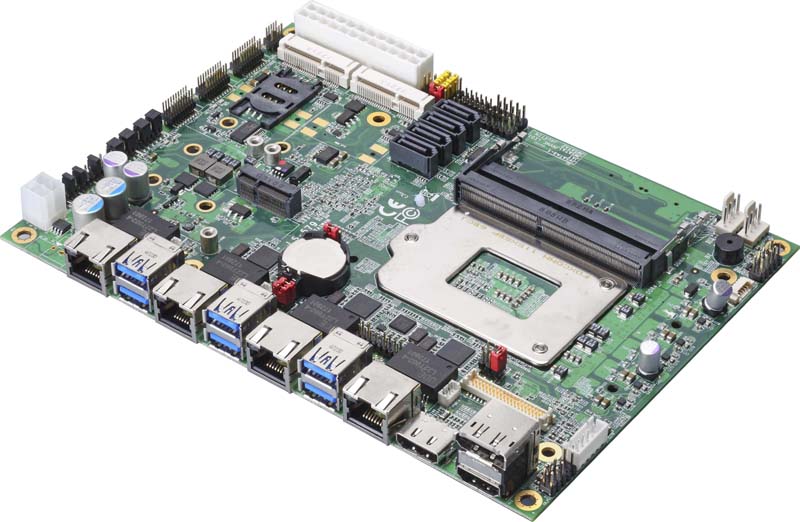

Embedded Miniboard 5.25"
Support Intel® 6th & 7th Gen Core i7 / i5 / i3 S-seriesand Xeon® E3-1200 v5 / v6 Processor with
Intel® C236 chipset, 2 x DDR4 SO-DIMM  1866/2133 up to 32 GB, integrated VGA, HDMI, LVDS,
DisplayPort, 4 x Giga LAN (Support PSE), 4 x USB 2.0, 6 x USB 3.0, 2 x RS232/422/485, 4 x RS232,
1 x PS/2, HD Audio, 4 x SATA3, GPIO, SMBUS, 1 x LPC, 1 x SIM socket, 2 x Mini-PCIe socket
(Support mSATA), 2 x M.2 (Key M), 1 x M.2 (Key E).

LS-579


Support Apollo Lake Series Processor.
2 x DDR3L SO-DIMM  1866 up to 8 GB, onboard  HDMI, LVDS, DisplayPort, 4 x Giga LAN,
4 x USB 2.0, 4 x USB 3.0, 2 x RS232/422/485, 4 x RS232, 1 x PS/2, HD Audio, 2 x SATA3, GPIO,
SMBUS, 1 x LPC, 1 x SIM socket, 2 x Mini-PCIe socket (Card1 support mSATA), 1 x SD Card.

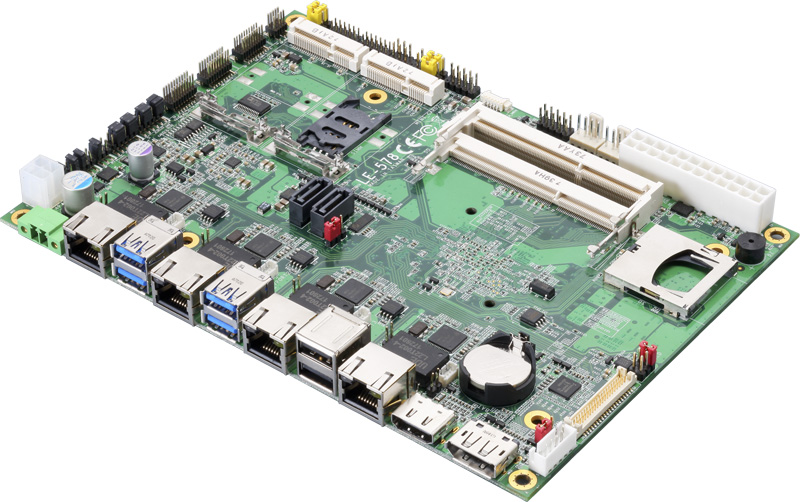

LE-578


Support  3rd and 2nd generation  Intel® Core™ i7 / i5 / i3 / Mobile
CPU with Mobile Intel® QM77 Express, DDR3 up to 16GB, 6 x Giga
LAN, 4 x USB 2.0, 4 x USB 3.0 , 6 x COM, 6 x SATA, HD Audio,
Mini-PCIe socket, Standard 20-pin ATX P/S or DC 9 ~ 24V input

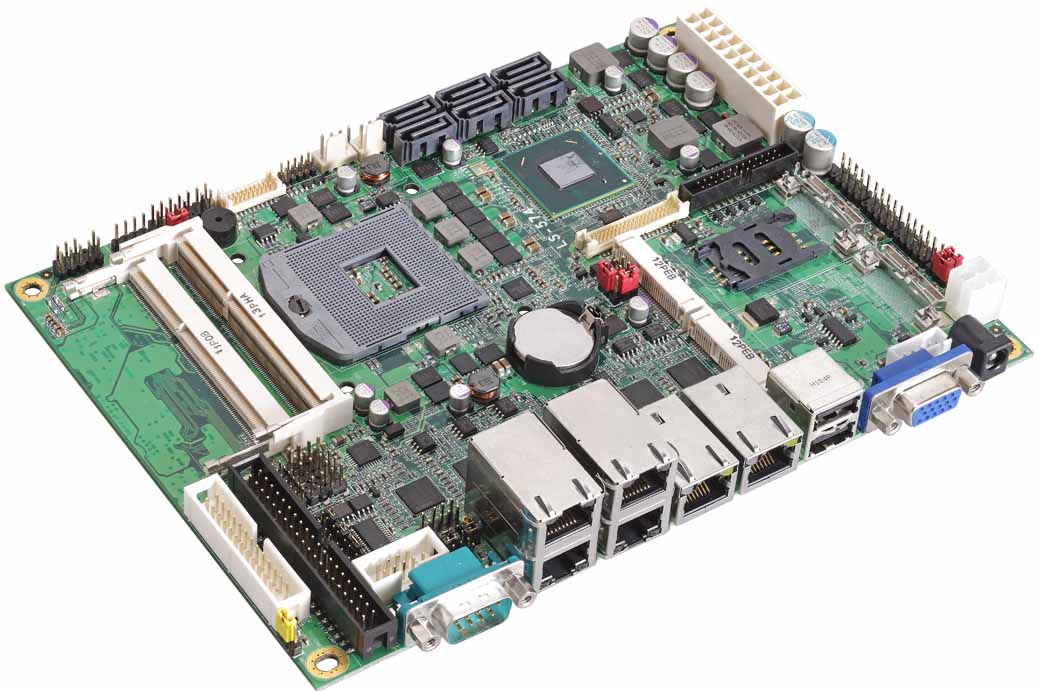

LS-576


5.25" SBC Supports 2nd generation mobile Intel® Core i7 /i5 /i3

2nd generation Intel® Core™ i7 / i5 / i3 Mobile processor in
PGA 988B,Mobile Intel® QM67 Express chipset, DDR3 800/1066 MHz
up to 16 GB,Support VGA, LVDS, Display port, HD audio,
6 x Intel® Giga LAN,1 x RS232/422/485, 5 x RS232, 8 x USB2.0,
LPT, 8-bit GPIO, SMBUS,2 x Mini-PCIe sockets , SIM socket,
6 x SATA with RAID,DC 9V ~ 24V full range input or standard
20-pin ATX P/S

LS-574


5.25" Intel® Atom platform with 4 x Intel® Giga LAN

Intel® Atom N270 processor @ 533MHz FSB
Intel® 945GSE & ICH7M chipset
DDR2 up to 2GB, VGA, DVI, LVDS and HDTV
Onboard 4 x Intel® Gigabit LAN, IDE, SATA, USB2.0, COM
CompactFlash and Mini-PCI / PCI socket , Audio
20/24-pin ATX or 9~24V DC-IN

LE-575


5.25" SBC with onboard Intel Celeron M 600 MHz CPU

5.25" SBC with onboard Intel Celeron M 600 MHz CPU, 256 MB DDR SDRAM
Intel 852GM and ICH4 Chipset, Intel GMCH integrated graphics controller VGA
Interface, 18/24-bit dual channel LVDS support, DVI(optional)
Onboard LAN, Audio Interface,1 x CompactFlash socket
6 x COM,  6 x USB, 1 x 32-bit PCI slot, and 1 x Mini PCI

特价FT-8551


5.25" Intel® Penryn platform with 6 x Intel® Giga LAN

Intel® CoreTM 2 Duo processor with socket-P @ 667/800/1066 MHz FSB
Intel® GM45 & ICH9M , DDR3 800/1066 MHz up to 4.0 GB
Onboard VGA , HDTV , 24-bit Dual Channel LVDS , Optional DVI
PCI slot , Mini-PCI and PCI Express Mini card socket . 8-bit GPIO
Onboard 6 x Intel® Gigabit LAN , HD Audio , 6 x COM , USB 2.0
DC 9V ~ 24V full range input or standard 20-pin ATX P/S

LS-573


Intel® Core™ 2 Quad with 2 x DVI or LVDS 5.25" SBC
Intel® CoreTM 2 Quad / CoreTM 2 Duo Desktop , 800/1066/1333 MHz FSB
Intel® Q35 & ICH9DO , DDRII 667/800 MHz up to 4.0 GB
Onboard VGA , Dual DVI or LVDS interface
1 x PCI slot & 1 x Mini-PCI socket
Onboard 2 x Intel® Gigabit LAN , HD Audio , LPT , SMBUS
1 x RS-232/422/485 & 5 x RS232 , 8 x USB 2.0 , IrDA , GPIO

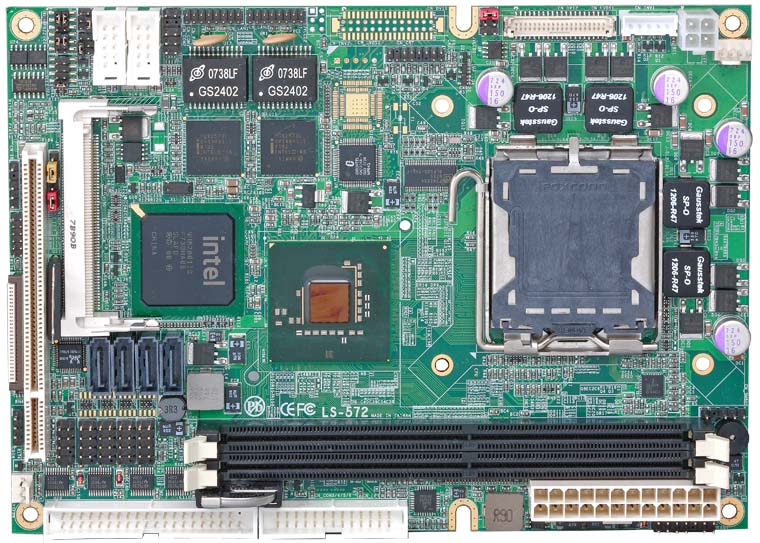

LS-572


Intel® CoreTM 2 Duo ( Meron )processor , 533 / 800 MHz FSB
Intel® GME965 & ICH8M , DDRII 533 / 677 MHz up to 2.0 GB ,
Optional onboard 1.0 GB DDRII SDRAM
Onboard VGA , TV-out , DVI , 18/24-bit Dual Channel LVDS .
2 x Mini-PCI and 1 x PCI slot onboard ,
Onboard 2 x Intel® Gigabit LAN
RS232/422/485 , HD Audio , SMBus , USB 2.0 ,
8-bit GPIO , LPT , FDD , IrDA , Compactflash socket
DC 12V input input or standard 20-pin ATX power supply

LS-571

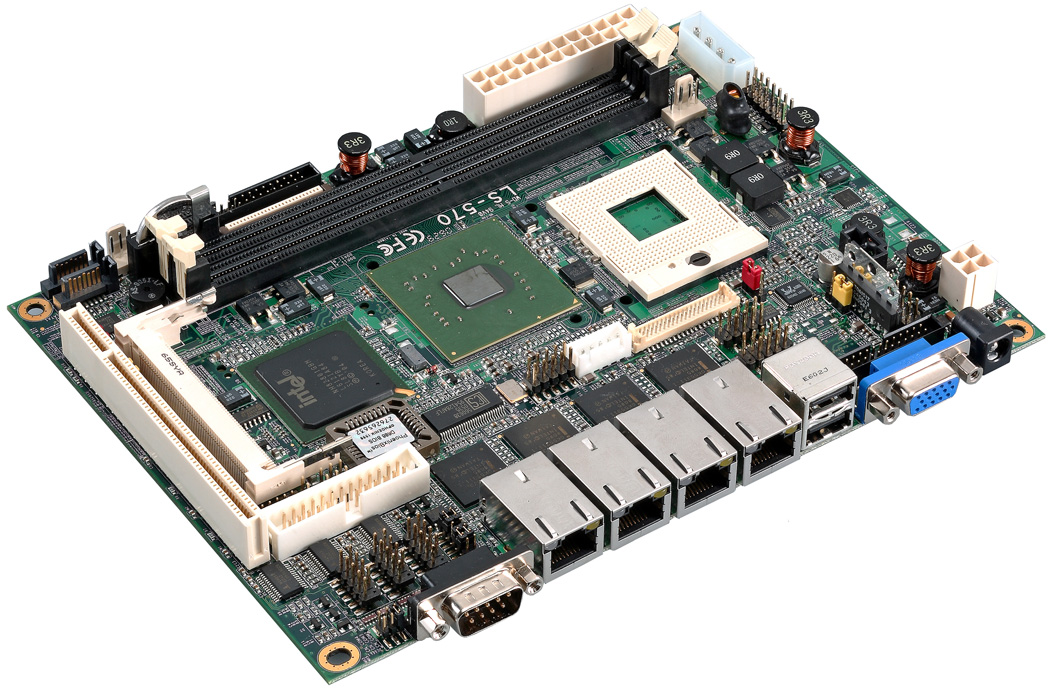

5.25" Intel CoreTM  2 Duo / Core Duo solution Miniboard
Intel Core Duo / Core Solo / Celeron M processor @ 533/667 MHz FSB
2 x 240-pin DDRII 533/677 MHz support up to 3.0 GB
Onboard VGA , LVDS , DVI
Onboard 4 x Intel Gigabit Ethernet controller
2 x SATA, 4 x COM, 6 x USB 2.0, LPT , GPIO ,
Onboard CompactFlash & Mini-PCI socket
Standard ATX power supply / Full range 8 ~ 24V DC input

LS-570


5.25" Embedded VIA Eden Miniboard
Embedded VIA V4 Eden 1GHz CPU
Onboard optional 256 MB DDR SDRAM & one184-pin DIMM support up to 1GB.
Onboard VGA with Max. 64MB system shard memory
Onboard 4 x Realtek RTL 8110S-32 Gigabit Ethernet controller
2 x SATA, 18-24-bit LVDS, 4 x COM, 4 x USB 2.0, LPT
Onboard CompactFlash & Mini-PCI socket, DC +12 input

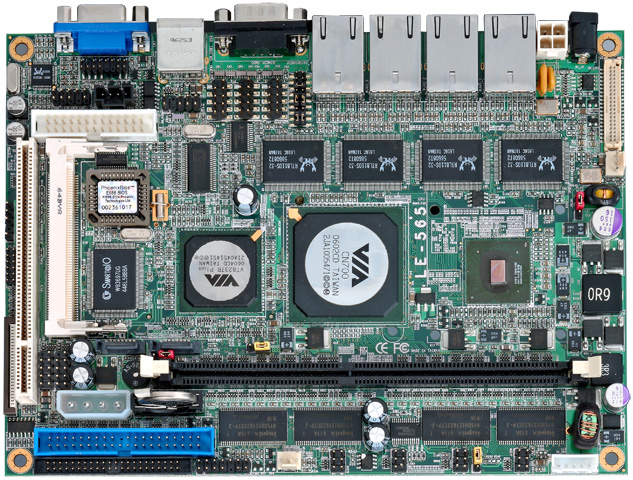

LE-565


5.25" EBX Embedded VIA Eden Miniboard
Embedded VIA Eden 533 MHz CPU / 133 MHz FSB
Onboard 128/256 MB PC133 SDRAM
Onboard CRT SVGA with Max. 8MB system shard memory
Onboard 2 LAN Solution with 4 x Realtek 8137C+ 10/100 Mbps
or 3 x Intel 82551QM 10/100 Mbps + 1 x Intel 82540EM 10/100/1000 Mbps
2 COM, 2 USB,1 Parallel Ports
Onboard CompactFlash Type-I/II Interfaces

LE-564


5.25" EBX Embedded VIA Eden Miniboard
Embedded VIA Eden 667/533 MHz CPU / 133 MHz FSB
Onboard 128/256 MB PC133 SDRAM
Onboard LVDS/TTL Flat Panel / CRT SVGA with 32 MB VRAM
Onboard Dual 10/100 Mbps LAN Interface
Onboard AC97 3D Audio, 4 COM, 4 USB, 2 Parallel Ports
Onboard PC/104-plus and CompactFlash Type-II Interfaces

LE-562

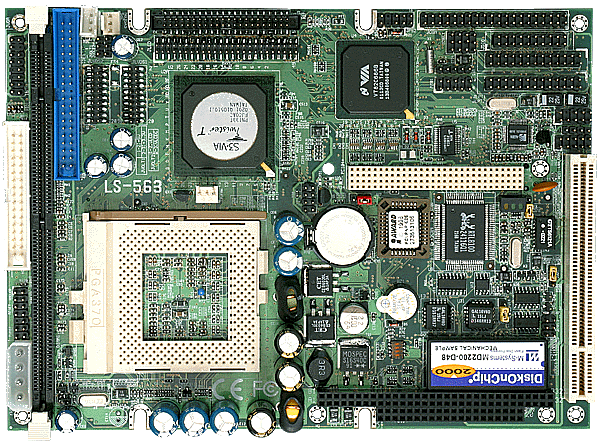

5.25" EBX Socket 370 Tualatin Miniboard
Intel Tualatin Pentium-III / Celeron, VIA C3 CPU @ 100/133 MHz FSB
Built-in LVDS/TTL TFT/DSTN LCD SVGA with 32 MB Video Memory
Optional AV / S-Video TV-out Interface
Onboard LAN, Audio Interface
Onboard 4 COM, 2 LPT, 2 USB and 16-bit GPIO Ports
Onboard PC/104, PC/104-plus and DiskOnChip Interfaces

LS-563

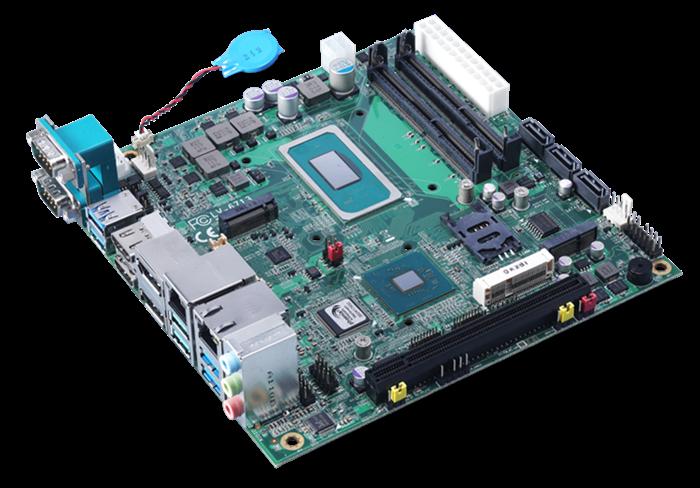

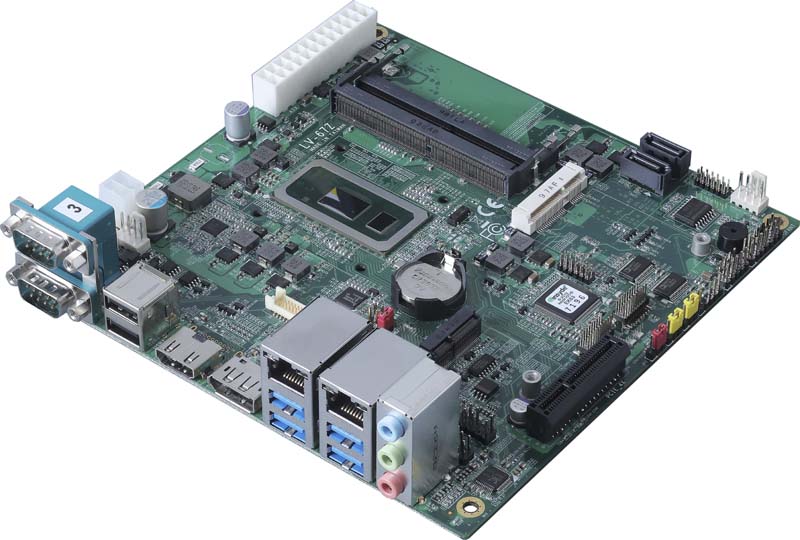

MiniITX Motherboard 17×17
Support 8th Generation Intel® Core Processor.
DDR4 up to 32 GB, onboard HDMI, LVDS, DVI, VGA, optional DisplayPort, 1 x Giga LAN, 1 x Giga
PHY LAN, 4 x USB 2.0, 6 x USB 3.1, 2 x RS232/422/485, 4 x RS232, 1 x PS/2, HD Audio, 3 x SATA3,
2 x GPIO, SMBUS, LPC, PCIe X16, 1 x SIM socket, 2 x Mini-PCIe socket (MINI_CARD2 supports
mSATA).

LV-67W


Support 8th Generation Intel® Core Processor.
DDR4 up to 32 GB, onboard HDMI, LVDS, DVI, VGA, optional DisplayPort, 1 x Giga LAN, 1 x Giga
PHY LAN, 4 x USB 2.0, 6 x USB 3.1, 2 x RS232/422/485, 4 x RS232, 1 x PS/2, HD Audio, 3 x SATA3,
GPIO, SMBUS, LPC, PCIe X16, 1 x SIM socket, 1 x Mini-PCIe socket (support mSATA), 1 x Half-Size
Mini-PCIe socket.

LV-67X


Support Apollo Lake Series Processor.
DDR3L up to 8 GB, Onboard  HDMI, LVDS, optional DisplayPort or DVI, 2 x Giga LAN, 4 x USB 2.0,
4 x USB 3.0, 2 x RS232/422/485, 4 x RS232, 1 x PS/2, HD Audio, 2 x SATA3 with RAID, GPIO,
SMBUS, 1 x LPC, 1 x SIM socket, 1 x Mini-PCIe socket (support mSATA), 1 x Mini PCI, 1 x PCI.

LV-67U


Support Intel® Skylake/Kaby Lake 6th / 7th generation  U-series processor mobile CPU with
Sunrise Point-LP chipset, DDR4 up to 32 GB, Onboard  DVI-I, Display port, LVDS, 1 x Giga LAN,
1 x Giga PHY LAN, 4 x USB 2.0, 4 x USB 3.0, 6 x COM, HD Audio, 2 x SATAIIl with RAID 0&1 ,
GPIO, 1 x PCI slot, 1 x MiniPCI, 2 x Mini-PCIe socket, 1 x SIM slot.

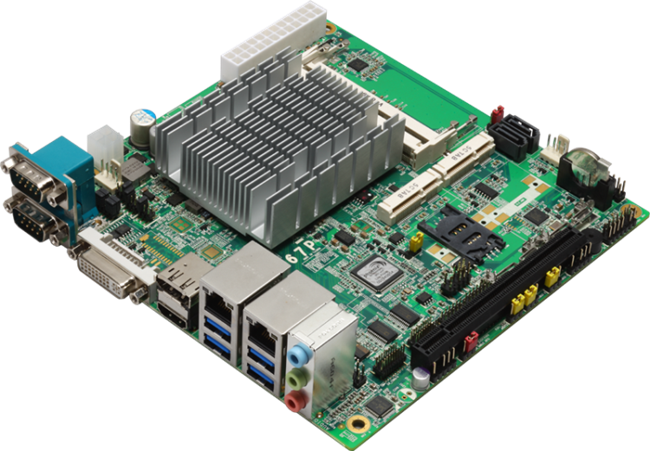

LV-67T


Intel® Braswell Series  Processor.
Onboard  DVI, HDMI , HD Audio, Serial ATA3, USB3.0 & 2.0, Gigabit LAN, PCIE Mini card, mSATA, optional choice CRT, LVDS, or Display port.

LV-67P


Support  Skylake / Kaby Lake Intel® 6th / 7th Gen Core H-series Processor and Xeon® E3-1505M
 v6 mobile CPU with Intel®QM170/QM175/CM238 chipset, DDR4 up to 32 GB, Onboard  DVI-I,
Display port, LVDS, 2 x Giga LAN, 4 x USB 2.0, 6 x USB 3.0, 1 x RS232/422/485, 5 x RS232, 1 x PS/2,
HD Audio, 3 x SATA3 with RAID, GPIO, SMBUS, 1 x LPC, 1 x SIM socket, PCIe X16, 1 x Mini-PCIe
socket (support mSATA), 1 x Half-Size Mini-PCIe socket .

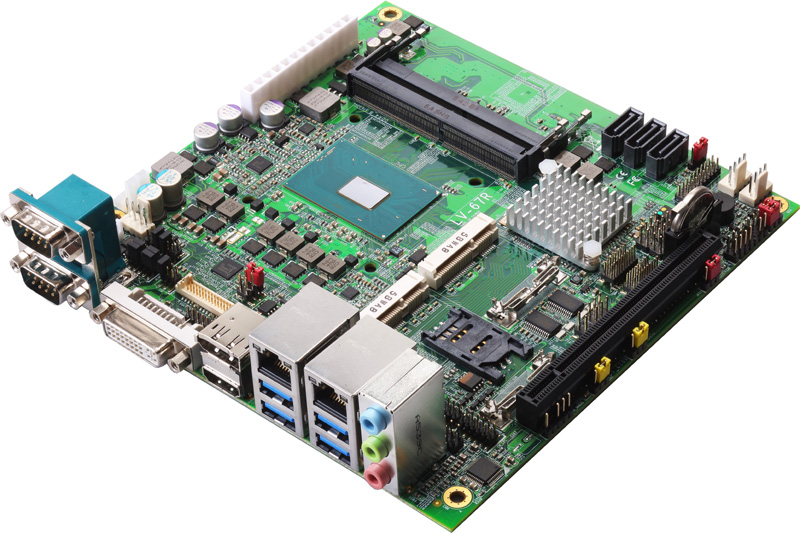

LV-67R


Support  6th/7th  generation  Intel® Core™ i7 / i5 / i3 series and Xeon® E3-1200 v5 processor desktop CPU with Intel® C236 chipset, DDR4 up to 32 GB, Onboard  DVI-I, Display port,LVDS, 1 x Giga LAN, 1 x Giga PHY LAN, 4 x USB 2.0, 6 x USB 3.0, 6 x COM, HD Audio,4 x SATAIIl with RAID, GPIO, PCIe X16, 1 x Mini-PCIe socket , 1 x Half-Size Mini-PCIe socket .

LV-67S


Support  Bay Trail  Intel® Celeron™ J1900 / N2930 and Atom™ E3845 mobile CPU, DDR3L up to 8GB, Onboard Display port & DVI, CRT , 2 x LVDS, 2 x Giga LAN, 5 x USB 2.0, 1 x USB 3.0, 6 x COM, HD Audio, 2 x SATAIl , GPIO , PCIE X16 , 1 x Mini-PCIe socket , mSATA.



LV-67O


Support  4th  generation  Intel® Core™ i7 / i5 / i3 / Mobile CPU with
Intel® QM87 Express, DDR3L SO-DIMM up to 16GB, Onboard VGA & DVI,
LVDS,Display port,2 x Giga LAN, 4 x USB 2.0, 6 x USB 3.0, 6 x COM,
HD Audio, GPIO,4 x SATAIIl with RAID,PCIe X16, 2 x Mini-PCIe socket .

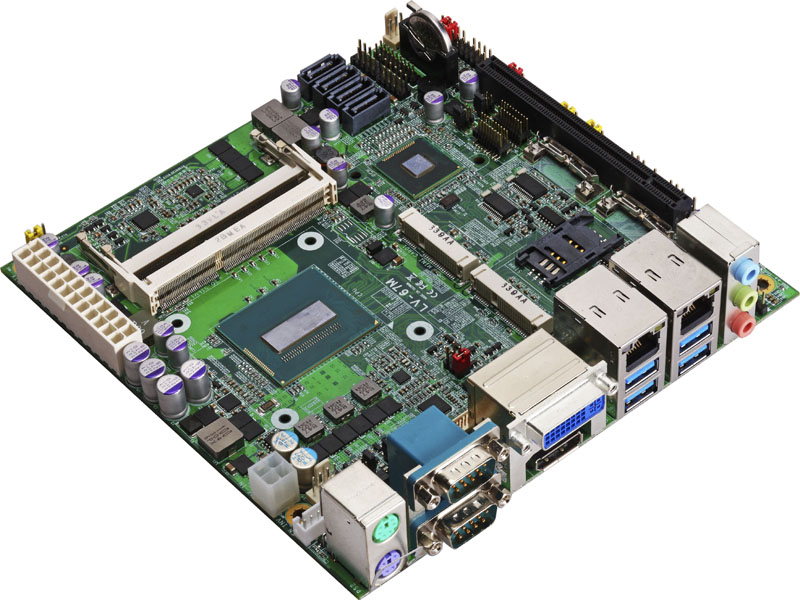

LV-67M


Support  4th  generation  Intel® Core™ i7 / i5 / i3 / desktop CPU with
Intel® Q87 Express, DDR3 up to 16GB, Onboard VGA & DVI,Display
port ,LVDS,2 x Giga LAN, 4 x USB 2.0, 6 x USB 3.0, 4 x COM, HD Audio,
4 x SATAIIl with RAID,GPIO, PCIe X16, 2 x Mini-PCIe socket .

LV-67N

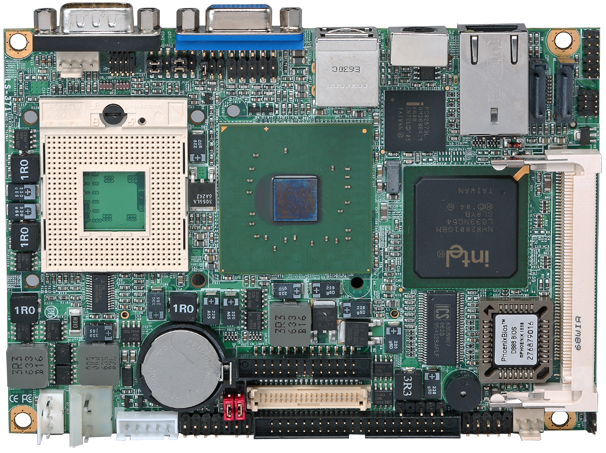

3.5" Miniboard based on Intel Celeron Processor 807UE/847E,
Intel HM65 Express Chipset with DDR3 SDRAM, VGA,
24-bit Dual channel LVDS Interface, DVI,Giga LAN, 2 x COM ,
HD Audio, 6 x USB, SATAIII , LPC, Mini-PCIE, GPIO, DC 9V~24V

LV-67L


Support 3rd and 2nd generation Intel® Core™ i7/i5/i3/ desktop CPU
with Intel® Q77 Express, DDR3 up to 16GB, Onboard VGA & DVI,
2 x Giga LAN, 4 x USB 2.0, 4 x USB 3.0, 4 x COM, HD Audio,
2 x SATAII & 2 x SATAIIl with RAID,
GPIO, PCIe X16, Mini-PCIe & Mini-PCI socket .

LV-67J


Mini-ITX support 3rd generation Intel Core i7 / i5 / i3 Mobile
processor Mobile Intel QM77 Express chipset,
DDR3 1066/1333/1600 MHz up to 16 GB,Onboard VGA, LVDS,
DVI, HD audio, 2 x Gigabit ethernet, 6 x SATA 1 x RS232/422/485,
5 x RS232, 6 x USB2.0, 4 x USB3.0, SPDIF, 8-bit GPIO,
PCI-Express X16 slot , 2 x Mini-PCIe sockets , 1 x SIM socket
Standard 24-pin ATX P/S or Full range DC 9V ~ 24V input

LV-67K


Intel® AtomTM Processor D2550 or N2800, Onboard LVDS, VGA,
Giga LAN,USB2.0 HD Audio, SATA, PCIE Mini card & Mini-PCI socket,
DC 9V ~24V input or ATX P/S

LV-67I


Onboard AMD Dual-core T56N 1.65 GHz
AMD A55E FCH chipset, DDR3 1066/1333 MHz up to 8.0 GB,
Support VGA, LVDS, DVI, HD audio, 2 x Intel® Giga LAN,
4 x SATA, 1 x SIM,1 x RS232/422/485, 5 x RS232, 10 x USB2.0,
LPT, 8-bit GPIO, SMBUS,PCI slot, Mini-PCIe & Mini-PCI sockets,
ATX P/S or Full range DC 5V ~ 24V input

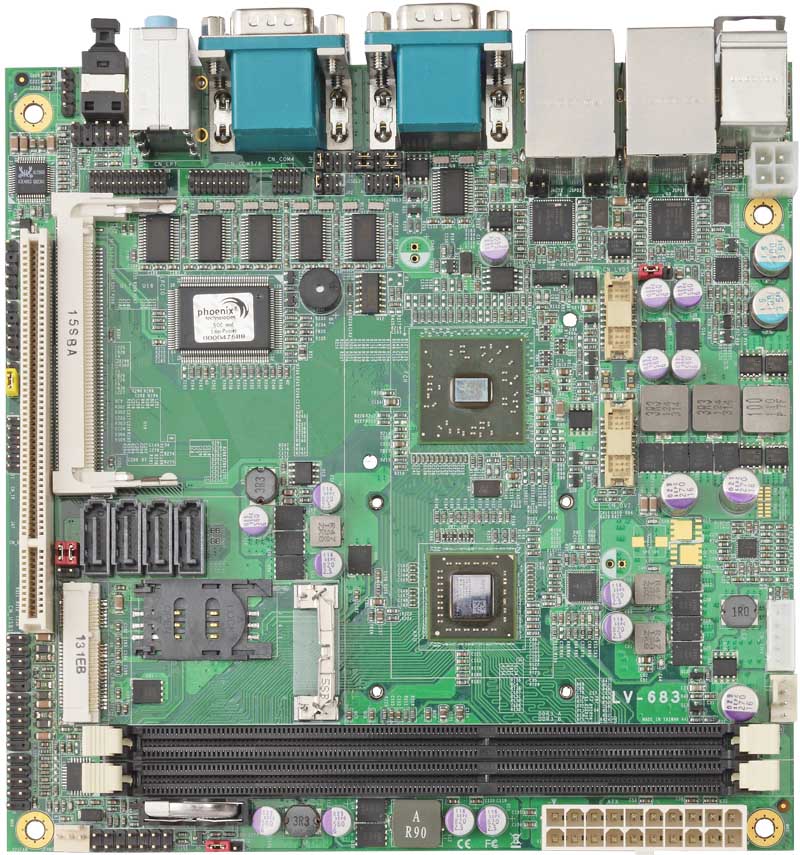

LV-683


Support 2nd generation Intel® Core™ i7 / i5 / i3 LGA1155 CPU

Mini-ITX support 2nd generation Intel® Core™ i7 / i5 / i3
LGA 1155 processor,Intel® Q67 Express chipset, DDR3 1066/1333
MHz up to 16 GB,Onboard VGA, DVI, HD Audio, 2 x Intel® Gigabit
LAN, 4 x SATA with RAID,1 x RS232/422/485, 3 x RS232,
8 x USB2.0, SPDIF, 8-bit GPIO,PCI-Express X16 slot,
Mini-PCIe & Mini-PCI socket

LV-67G


Support 2nd Generation Intel® Core™ i7 / i5 / i3 Mobile processor

Mini-ITX support 2nd generation Intel® Core™ i7 / i5 / i3,
Mobile processor,Mobile Intel® QM67 Express chipset,
DDR3 1066/1333 MHz up to 16 GB,Onboard VGA, LVDS, DVI,
HD audio, 2 x Gigabit ethernet, 6 x SATA,1 x RS232/422/485,
5 x RS232, 10 x USB2.0, SPDIF, 8-bit GPIO,PCI-Express X16 slot,
2 x  Mini-PCIe sockets , 1 x SIM socket,
Standard 20-pin ATX P/S or Full range DC 9V ~ 24V input

LV-67H


Mini-ITX support Intel® Core™ i7 / i5 / i3 Mobile with Intel® QM57

Intel® Core™ i7 / i5 / i3 Mobile processor
Mobile Intel® QM57 Express chipset, DDR3 800/1066 MHz up to 8.0 GB,
Support VGA, LVDS, DVI, HD audio, 2 x Giga LAN, 6 x SATA with RAID 0/1/5/10
1 x RS232/422/485, 1 x RS232, 10 x USB2.0, SPDIF, 8-bit GPIO,
PCI-Express X16 slot , Mini-PCIe & Mini-PCI sockets
Standard 20-pin ATX P/S or Full range DC 9V ~ 24V input

LV-67F


Onboard Intel® Atom™ dual-core processor solution

Onboard Intel® Atom™ D525/D510 dual-core or D410/N450
single-core processor/Intel® ICH8M system chipset
DDR2-667 SO-DIMM SDRAM up to 2.0 / 4.0 GB
Onboard VGA, LVDS, 2 x Intel® Giga LAN, HD Audio
6 x COM , 8 x USB2.0 , 3 x SATA , 1 x LPT , 1 x SMBUS
1 x PCI slot , 2 x PCIE mini card & 1 x Mini-PCI sockets
DC 9V ~ 24V input or standard ATX power supply

LV-67E


Intel® Core™ i7 / i5 / i3 LGA1156 Platform

Intel® Core™ i7 / i5 / i3 / Pentium® Desktop processor,
Intel® BD82Q57 PCH (Platform Controller Hub), DDR3 1066/1333 MT/s up to 8GB,
Support VGA, DVI, HD audio, 2 x Gbit LAN, GPIO, one x16 PCIe, 1 x Mini PCIe,
1 x MiniPCI, 4 x SATAII (RAID 0, 1, 5, 10), 1 x RS232/422/485, 3 x RS232,
1 x CDIN, 1 x IrDA, SMBus, 8 x USB2.0, SPDIF, 24-pin ATX power supply

LV-67C


Intel® Core™ 2 Quad / Core™2 Duo Mini-ITX Motherboard

Intel® Core 2 Quad / Core 2 Duo / Celeron Desktop, 800/1066/1333 MHz FSB,
Intel® Q45 & ICH10DO, DDRIII up to 4GB, Onboard VGA, DVI, LVDS,
6 x SATA with RAID, 1 x PCI slot & 1 x Mini-PCI socket, 8 x USB 2.0,
2 x Gigabit LAN, HD Audio, RS-232/422/485, IrDA, SPDIF, GPIO, SMBus

LV-67A


Intel® Atom N270 for fanless Embedded computing

Intel® Atom N270 ( 1.6 GHz ) processor @ 533 MHz FSB
Intel® 945GSE & ICH7M , DDR2 up to 2.0 GB ,
Onboard VGA , HDTV , 18-bit Dual Channel LVDS or DVI
2 x Intel® Gigabit ethernet , HD audio , 2 x SATA
8 x USB 2.0 , 6 x COM , SPDIF , GPIO
1 x PCI slot , 1 x PCI Express Mini card & 1 x Mini-PCI socket

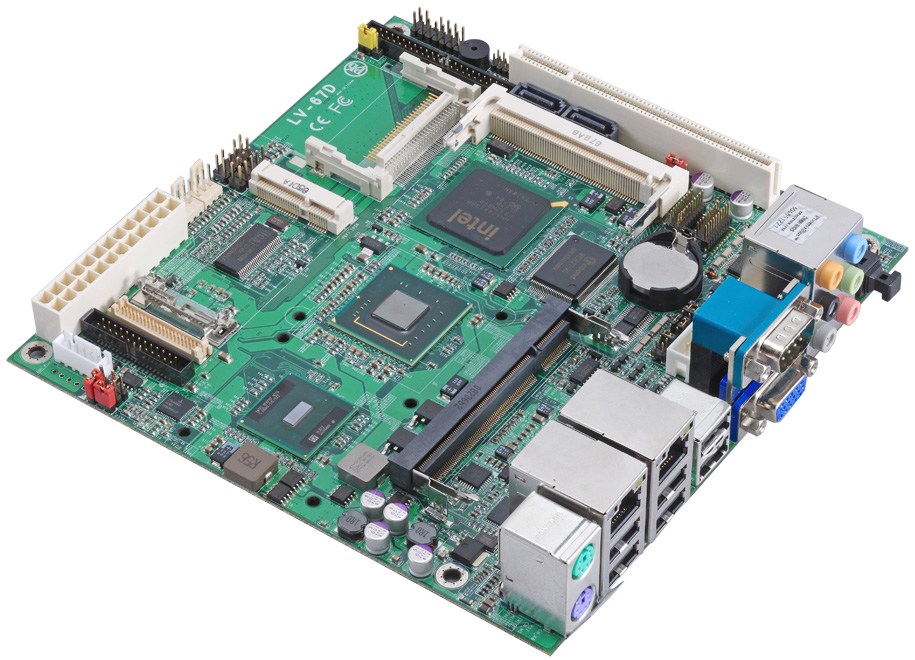

LV-67D


Intel® Core™ 2 Duo Mini-ITX Motherboard

Intel® CoreTM 2 Duo processor with socket-P @ 667/800/1066 MHz FSB
Intel® GM45 & ICH9M , DDR3 800/1066 MHz up to 2.0 GB ,
Onboard VGA , TV-out , 24-bit Dual Channel LVDS .
PCI-Express X16 , Mini-PCI and PCI Express Mini card socket .
Onboard 2 x Intel® Gigabit LAN , 7.1 channel HD Audio
RS232/422/485 , IEEE1394 , SPDIF , USB 2.0 ,
9V ~ 24V Full range DC input or standard 20-pin ATX power supply .

LV-67B


Mini-ITX VIA C7 Embedded Motherboard

VIA CN896 and VT8251 Chipset

DDR2 up to 4.0 GB, Onboard VGA and optional LVDS or DVI interface

2 x Gigabit LAN, 4 x SATA with RAID function

Mini-PCI and PCI slot , Optional ComactFlash socket

2 x serial ports, 8 x USB 2.0, LPT, FDD, GPIO, HD Audio

LV-66A


Intel® Core™ 2 Quad / Core™2 Duo Mini-ITXexpress Motherboard
Intel® CoreTM 2 Quad / CoreTM 2 Duo Desktop , 800/1066/1333 MHz FSB
Intel® Q35 & ICH9DO , DDRII up to 4.0 GB , Onboard VGA
1 x PCI-Express slot & 1 x Mini-PCI socket
Onboard 2 x Intel® Gigabit LAN , HD Audio
RS-232/422/485 , 8 x USB 2.0 , IrDA , SPDIF , GPIO

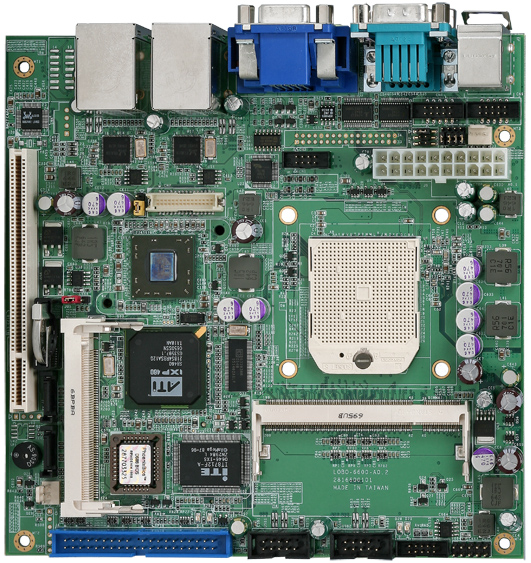

LV-678


AMD Mobile Turion 64 X2  Mini-ITX Motherboard
Mini-ITX AMD Mobile Turion 64 X2 638-pin Processor
ATI RS690E & SB600 Chipset
2 x 200-pin DDRII 533/667MHz SO-DIMM support up to 4.0 GB
ATI RADEON X-700 based 2D/3D graphics engine
24-bit Dual channel LVDS , DVI connector , Audio
2 x SATA interface , 1 x Mini-PCI and 1 x PCI slot
Dual Giga LAN , 8 x USB 2.0 , 4 x COM , CompactFlash socket


LV-682


Intel® CoreTM 2 Duo / CoreTM Duo processor , 533 / 667 / 800 MHz FSB
Intel® GME965 & ICH8M , DDRII 533 / 677 MHz up to 3.0 GB , Onboard VGA
2 x DVI , TV-out , 24-bit Dual Channel LVDS .
2 x Mini-PCI and 1 x PCI slot onboard
Onboard 2 x Intel® Gigabit LAN , 7.1 channel HD Audio
RS232/422/485 , IEEE1394 , SPDIF , USB 2.0 ,
8-bit GPIO , LPT , FDD , IrDA , Compactflash socket 9V ~ 24V Full range DC input or standard 20-pin ATX power supply .

LV-679


Mini-ITX AMD Mobile Turion 64 / Sempron Motherboard.
ATI RS485M & SB460 Chipset
2 x 200-pin DDRII SO-DIMM support up to 2.0 GB
ATI RADEON X-300 based 2D/3D graphics engine
18-bit Dual channel LVDS , MPEG-II hardware accelerator integrated
2 x SATA interface , 2 x Mini-PCI and 1 x PCI slot
Onboard Giga LAN , 8 x USB 2.0 , RS232/422/485 , CompactFlash socket

LV-681


Intel CoreTM  2 Duo / CoreTM Duo processor , 533 / 667 MHz FSB
DDRII 533 / 677 MHz up to 3.0 GB , Onboard VGA
18-bit Dual Channel LVDS .
2 x Mini-PCI and 1 x PCI-Express slot onboard
Onboard 1 x Intel Gigabit LAN , 5.1 channel Audio
RS232/422/485 , IEEE1394 , SPDIF , USB 2.0 ,
8-bit GPIO , LPT , FDD , IrDA
8 V ~ 21 V Full range DC input or standard 24-pin ATX power supply .

LV-677


Intel Core 2 Quad/Core 2 Duo Desktop/Pentium D,533/800/1066 MHz FSB .
DDRII up to 3.0 GB , Onboard VGA ,
Optional LVDS or DVI interface
1 x Mini-PCI and 1 x PCI slot
Onboard 2 x Intel Gigabit LAN , HD Audio
RS-232/422/485 , IEEE 1394 , USB 2.0 ,
IrDA , SPDIF , GPIO

LV-676


Intel Pentium M / Celeron M , 400/533 MHz FSB .
DDR333 up to 1 GB , Onboard VGA
Optional LVDS or DVI interface
S-video and Composite TV-out connector ,
2 x Mini-PCI and 1 x PCI socket
Onboard 1 x Intel Gigabit LAN , 5.1 channel Audio
RS-232/422/485 , IEEE 1394 , USB 2.0 ,
IrDA , SPDIF , GPIO

LV-675


Intel CoreTM  2 Duo / Pentium D LGA775 processor (170 x 170mm )
533/800/1066MHz FSB , EM64T supported
Intel 945G & ICH7R .2 x DDR2 533/667MHz SDRAM up to 2GB.
Intel GMA950 technology . 4 x SATA II with 300MB/s transfer rate.
Realtek 7.1-CH High Definition Audio. Onboard GPIO port.
1 x Mini-PCI socket and 1 x PCI-Express slot.
4 x Giga LAN , 2 x IEEE 1394 , 4 x USB 2.0 , S/PDIF.
2 x RS232 , GPIO , IrDA.

LV-674


Intel Pentium M / Celeron M processor (170 x 170mm )
Intel 915GME & ICH6M
2 x DDR2 400/533 MHz SDRAM up to 2GB.
Intel GMA900 technology .
Intel High Definition Audio compliance.
1 x Mini-PCI socket and 1 x PCI-Express 16x slot.
CompactFlash and PCMCIA socket on solder side.
2 x Giga LAN , 2 x SATA , 6 x USB 2.0 , S/PDIF.
4 x RS232 , GPIO , IrDA.

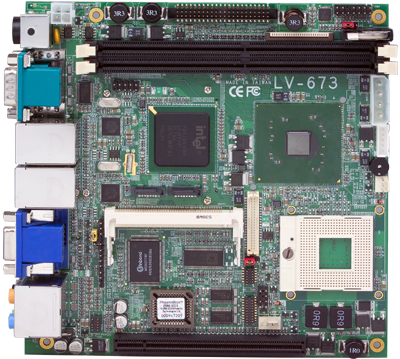

LV-673


Intel LGA775 Pentium 4 Prescott processor-based running
up to 3.6+ GHz with Intel 915G & ICH6R ,  2GB DDR2, 2x
Gigabit Ethernet port ,  6 x USB 2.0 , 2 x COM , 1 x SIR
AC97 3D Audio, 2 x IEEE1394 Interface, 8-bit digital I/O,
4 x SATA, PCI Express slot, Mini-PCI socket

LV-672


Mini-ITX Celeron M Embedded Motherboard (170 x 170 mm)
Onboard Intel Celeron M 600 MHz uFCBGA CPU
Intel 852GM and ICH4 Chipset
1 GB DDR 266  SDRAM
Intel 852GM GMCH Built-in Extreme Graphics with 256-bit 3D Engine
Intel Dynamic Video Memory up to 64 MBytes
Onboard 40-pin LVDS LCD connector
Onboard Intel 82541PI Gigabit Ethernet controller
Onboard PCMCIA Type I/II slot
Onboard Intel ICH4 Hi-Speed USB 2.0 Interface
Onboard 5.1-Channel

LV-671Z


Mini-ITX Pentium M Embedded Motherboard (170 x 170 mm)
Intel mPGA478 Pentium M @ 400 MHz FSB
Intel 855GME and ICH4 Chipset
1 GB DDR 266/333 DDR SDRAM
Intel 855GME GMCH Built-in Extreme Graphics with 256-bit 3D Engine
Intel Dynamic Video Memory up to 64 MBytes
Onboard 40-pin LVDS LCD connector
Onboard Intel 82541PI Gigabit Ethernet controller
Onboard PCMCIA Type I/II slot
Onboard Intel ICH4 Hi-Speed USB 2.0 Interface
Onboard 5.1-Channel

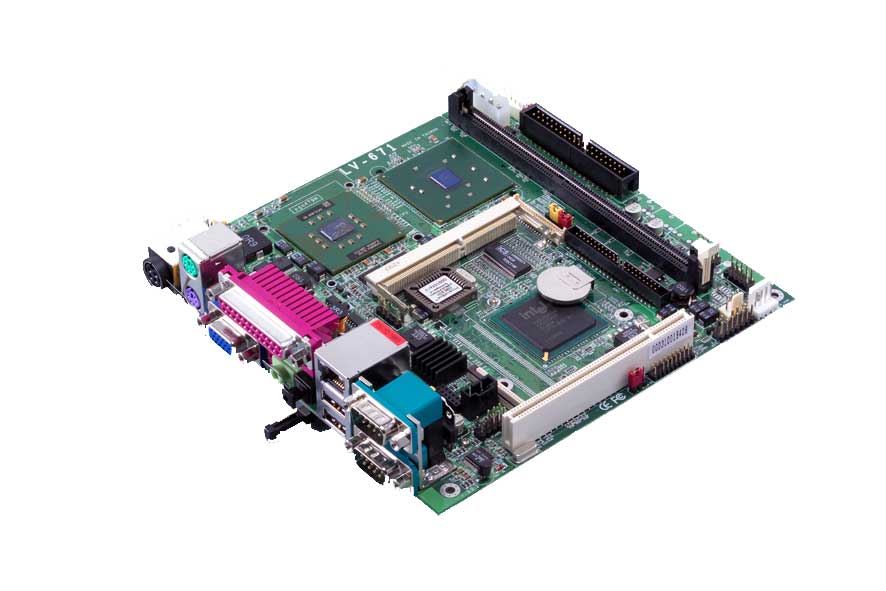

LV-671


Mini-ITX Pentium 4 -M Embedded Motherboard (170 x 170 mm)
Intel mPGA478 Pentium 4-M @ 400 MHz FSB
Intel 845GV and ICH4 Chipset
1 GB DDR 266/333 SDRAM
Intel 845G GMCH Built-in Extreme Graphics with 256-bit 3D Engine
Intel Dynamic Video Memory up to 64 MBytes
Onboard 24-bit Dual Channel LVDS TFT LCD
Onboard Intel PRO/100+ LAN Interface
Onboard Agere IEEE 1394 Interface
Onboard Intel ICH4 Hi-Speed USB 2.0 Interface
Onboard 5.1-Channel / SPDIF Audio Interfaces
Onboard AV / S-video TV-out Interface

LV-670M


Mini-ITX Pentium 4 Embedded Motherboard (170 x 170 mm)
Intel 845GV and ICH4 Chipset
Intel mPGA478 Pentium 4 / Celeron CPU @ 533/400 MHz FSB
1 GB DDR 266/333 SDRAM
Intel 845G GMCH Built-in Extreme Graphics with 256-bit 3D Engine
Intel Dynamic Video Memory up to 64 MBytes
Onboard 24-bit Dual Channel LVDS TFT LCD
Onboard Intel PRO/100+ LAN Interface
Onboard Agere IEEE 1394 Interface
Onboard Intel ICH4 Hi-Speed USB 2.0 Interface
Onboard 5.1-Channel / SPDIF Audio Interfaces

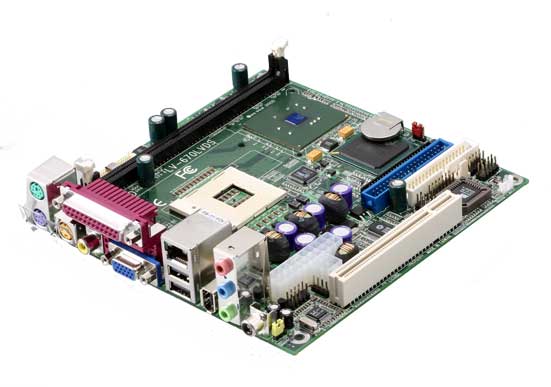

LV-670LVDS


Mini-ITX Pentium 4 Embedded Motherboard (170 x 170 mm)
Intel 845GV and ICH4 Chipset
Intel mPGA478 Pentium 4 / Celeron CPU @ 533/400 MHz FSB
1 GB DDR 266/333 SDRAM
Intel 845G GMCH Built-in Extreme Graphics with 256-bit 3D Engine
Onboard Intel PRO/100+ LAN Interface
Onboard Agere IEEE 1394 Interface
Onboard Intel ICH4 Hi-Speed USB 2.0 Interface
Onboard 5.1-Channel / SPDIF Audio Interfaces
Onboard AV / S-video TV-out Interface

LV-670


Mini-ITX VIA C7 Embedded Motherboard
VIA CN700 and VT8237R+ Chipset
Optional onboard 256 MB DDR SDRAM and one DDR DIMM up to 1 GB
Onboard VGA and optional LVDS or DVI interface
2 x Realtek  Gigabit LAN, 2 x SATA ports
Mini-PCI and PCI slot , ComactFlash socket
4 x serial ports, 6 x USB 2.0, LPT, IEEE 1394, AC97 Audio
8 ~ 24 full range DC input, onboard 4-pin 12V DC connector

LV-669


Mini-ITX AMD Geode NX Motherboard. ( Fanless )
VIA KN400A & VT8237R Chipset
1 x 184-pin DDR DIMM support up to 2 GB
VIA KN400A integrates S3 UniChrome 3D/2D graphics core
MPEG-II hardware accelerator integrated
2 x SATA interface support RAID 0/1
Onboard LAN , USB , RS232 , SPDIF , IrDA

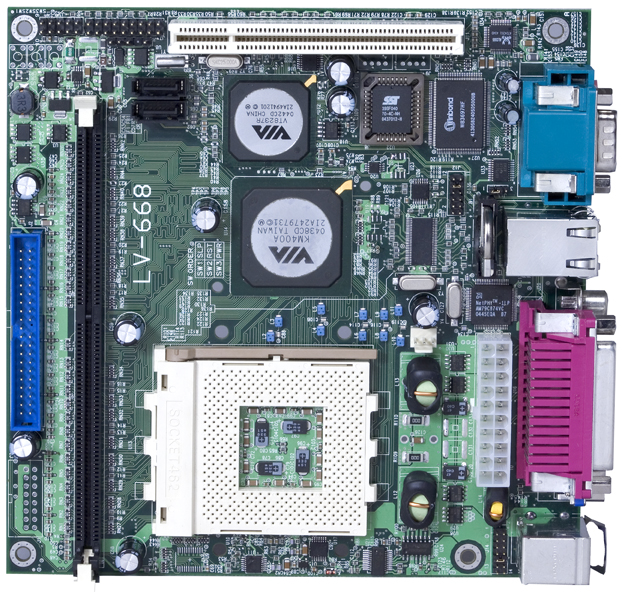

LV-668


Mini-ITX Embedded Motherboard (170 x 170 mm)
VIA CN400 with Embedded C3 1.0GHz CPU @ 133 MHz FSB
Support 1GB DDR266/333/400 SDRAM
Integrated VIA  MPEG-4  Accelerator and
integrated  UniChrome™ 2D/3D graphics
Onboard Dual LAN, Mini-AGP, SATA, 3 x IEEE1394,4 x COM ,CF
Onboard AC97 Audio , CompactFlash Socket

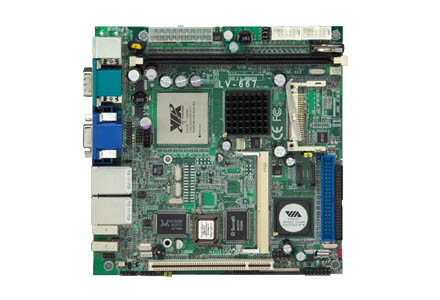

LV-667


AMD Geode LX 800 process-based Min-ITX running at 500+ MHz
Mini-ITX Motherboard based on AMD LX800 , CS5536, 1 GB DDR DIMM &
onboard 256MB DDR optional, IDE, AC97 Audio , Giga LAN , 4 x USB2.0 ,
2 x COM, GPIO,LVDS & TTL LCD Interface , IEEE1394 , Printer port ,
Mini-PCI & PCI socket, CF, DC 8~24V or ATX P/S

LV-651


Mini-ITX Embedded Motherboard (170 x 170 mm)
Embedded VIA Eden or EBGA C3 CPU @ 100/133 MHz FSB
Integrated 3D SVGA with 8 MB Video Memory
Onboard AC97 3D Audio, 10/100 Mbps LAN Interfaces
Onboard AV and S-video out TV-out Interface

LV-660


Mini-ITX Embedded Motherboard (170 x 170 mm)
Long Term Supply Intel 815E/ICH2 Chipset
Socket 370 Intel Pentium-III / Celeron, VIA C3 CPU
FSB 66/100/133 MHz, Intel Tualatin / Coppermine CPU Support
Integrated Intel 815E GMCH Built-in 3D SVGA Interface
Onboard AC97 3D Audio, Intel PRO/100+ LAN Interfaces
Optional IEEE 1394 and TV-out Interfaces

LV-603


AMD Geode GX1 process-based Min-ITX running at 300+ MHz
Low Power CPU and CS5330A, Onboard 128MB SDRAM
LVDS/TTL Flat Panel /CRT SVGA, AC97 3D Audio ,
10/100 Mbps LAN, PC/104, CompactFlash Interface,
ISA Slot, Serial and USB Ports, DC 12V be used

LV-650


Industrial Motherboard
Support  6th/7th  generation  Intel® Core™ i7 / i5 / i3 S-series and Xeon® E3-1200 v5 processor
desktop CPU with Intel® C236 chipset, DDR4 up to 64 GB, Onboard  DVI-I, Display port, LVDS,
1 x Giga LAN, 1 x Giga PHY LAN, 4 x USB 2.0, 6 x USB 3.0, 6 x COM, HD Audio, 4 x SATAIIl
with RAID, GPIO, 1 x PCIE X16, 1 x PCIE X4, 1 x PCIE X1, 4 x PCI, 2 x Mini-PCIe sockets.

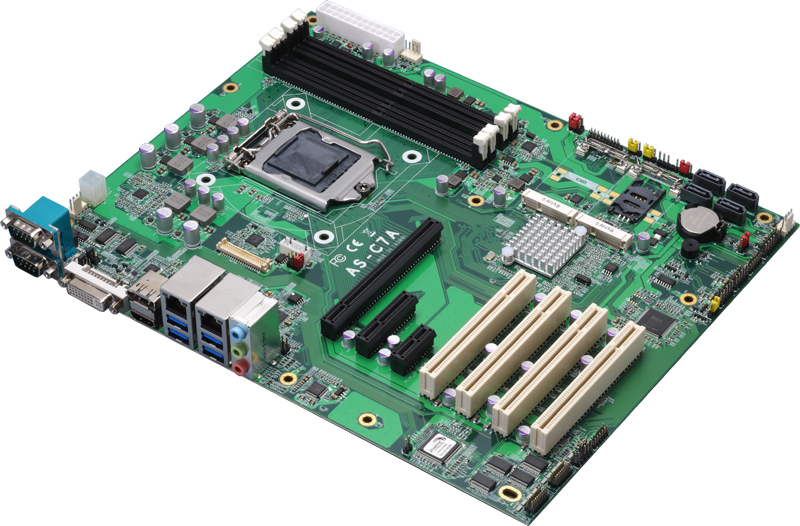

AS-C7A


Support 4th Intel® Core™ i7 / i5 / i3 / Celeron / Pentium Desktop
Processor with Intel® Q87 Express. Onboard DVI, Display Port, CRT,
LVDS, 32GB DDR3/DDR3L,2 x Giga LAN, 6 x USB 2.0, 6 x USB 3.0,
6 x COM, 4 x SATA,HD Audio, GPIO, LPT, SMBUS, IrDA,2 x PCI slots,
PCI-Express X16 & X4 slot, Mini-PCIe & Mini-PCI sockets.

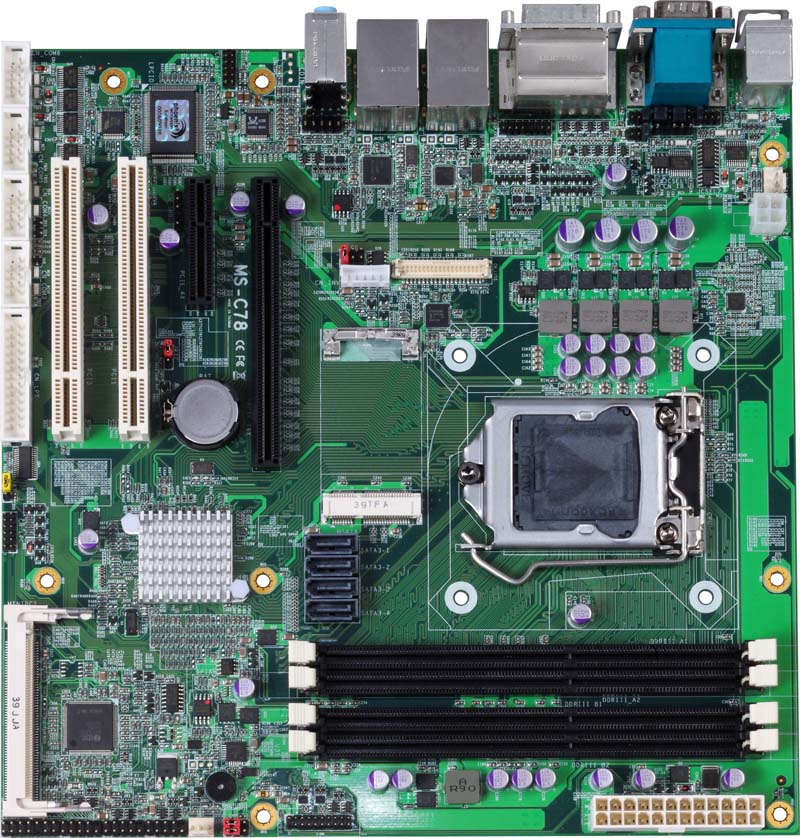

MS-C78


Support 4th Intel® Core™ i7 / i5 / i3 and Celeron 2002E Mobile CPU with Mobile Intel® QM87 Express. Onboard DVI, Display Port, CRT, LVDS, 32GB DDR3L, 2 x Giga LAN,4 x USB 2.0, 6 x USB 3.0, 6 x COM, 4 x SATA, HD Audio, GPIO, LPT, SMBUS, IrDA,2 x PCI slots, PCI-Express X16 & X4 slot, Mini-PCIe & Mini-PCI sockets.

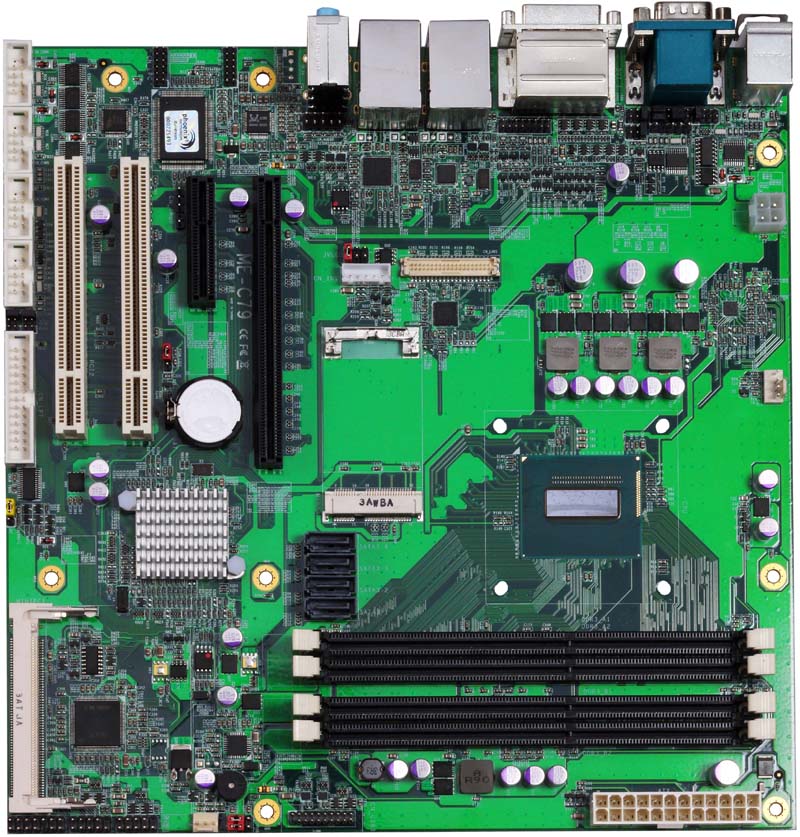

ME-C79


Support  3rd and 2nd generation  Intel® Core™ i7 / i5 / i3 / desktop
CPU with Intel® Q77 Express, DDR3 up to 32GB, Onboard VGA & DVI,
2 x Giga LAN, 8 x USB 2.0, 4 x USB 3.0, 6 x COM, HD Audio,
4 x SATAII & 2 x SATAIIl with RAID,GPIO,TPM, PCIe X16, PCIe X4,
Mini-PCIe & Mini-PCI, 5 x PCI socket .

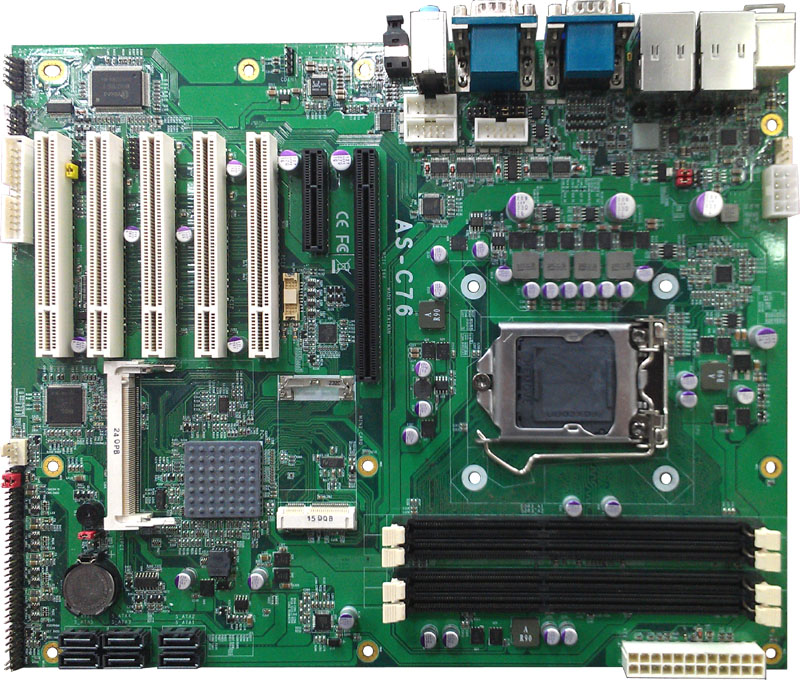

AS-C76


Support  3rd and 2nd Intel® Core™ i7 / i5 / i3 / Mobile CPU with
Mobile Intel® QM77 Express, onboard VGA, LVDS & DVI, 16 GB DDR3
2 x Giga LAN, 6 x USB 2.0, 4 x USB 3.0, 6 x COM, 6 x SATA,
HD Audio, GPIO PCI-Express X16 & X4 slot, Mini-PCIe & Mini-PCI sockets.

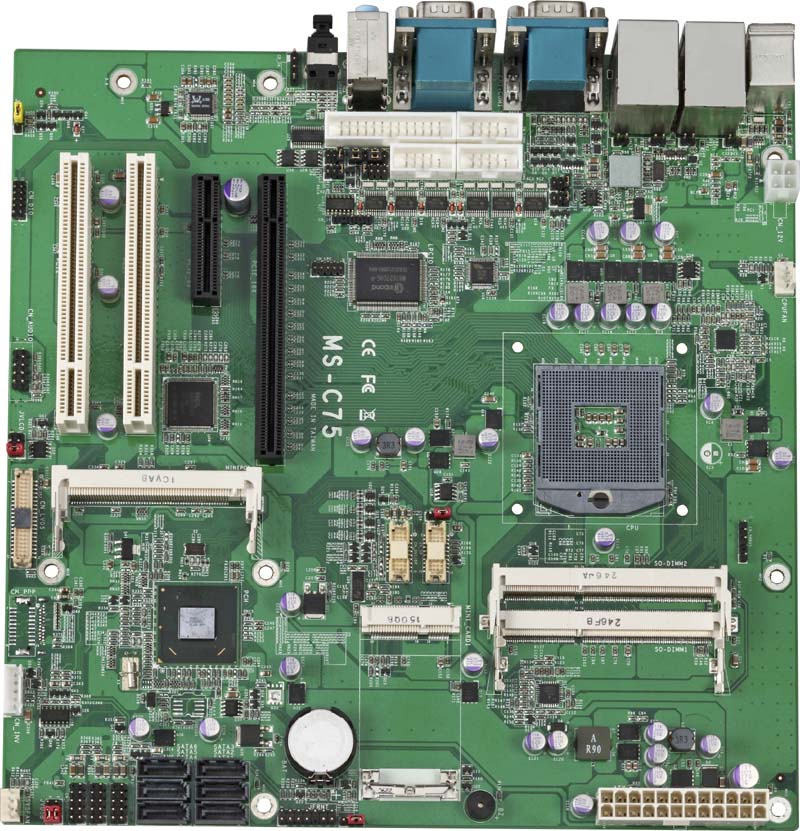

MS-C75


2nd generation Intel® Core™ i7 / i5 / i3 Pentium and Xeon
Motherboard

2nd generation Intel® Core™ i7/i5/i3, Pentium & Xeon with
Intel® Q67 Express chip, Onboard VGA & DVI, 32 GB DDR3,
2 x Giga LAN, 12 x USB 2.0, 6 x COM, HD Audio
6 x SATA with RAID, GPIO, SPDIF,  PCIe X16, 5 x PCI slots,
Mini-PCIe & Mini-PCI

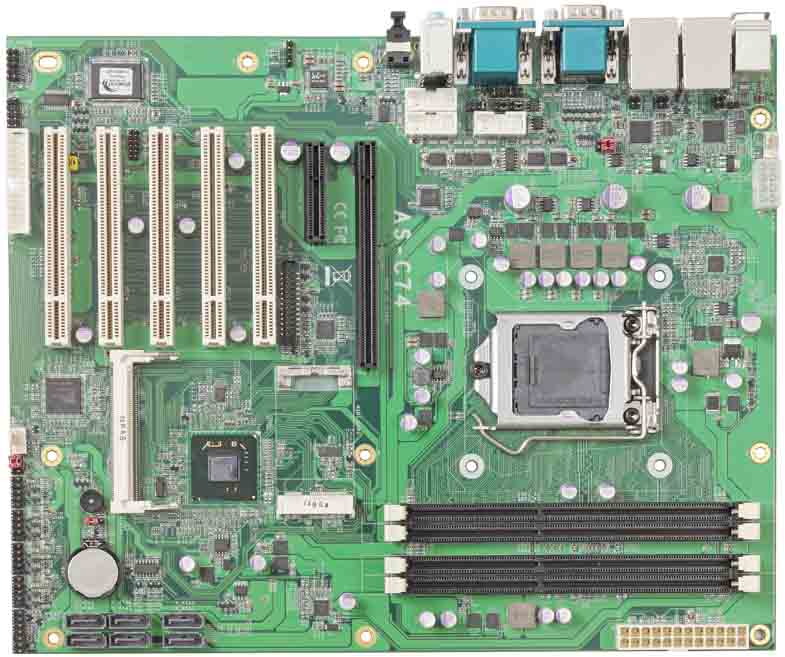

AS-C74


Intel® Core™ i7 / i5 / i3 PGA988B  MicroATX motherboard

2nd generation Intel® Core™ i7 / i5 / i3 & Celeron Mobile processor
Mobile Intel® QM67 Express chipset, DDR3 1066/1333/1600 MHz
up to 16 GB,Support VGA, LVDS, DVI, HD audio, 2 x Giga LAN,
6 x SATA,1 x RS232/422/485, 5 x RS232, 10 x USB2.0, SPDIF,
8-bit GPIO, LPT ,PCI-Express X16 & X4 slot , 2 x PCI slots ,
Mini-PCIe & Mini-PCI sockets

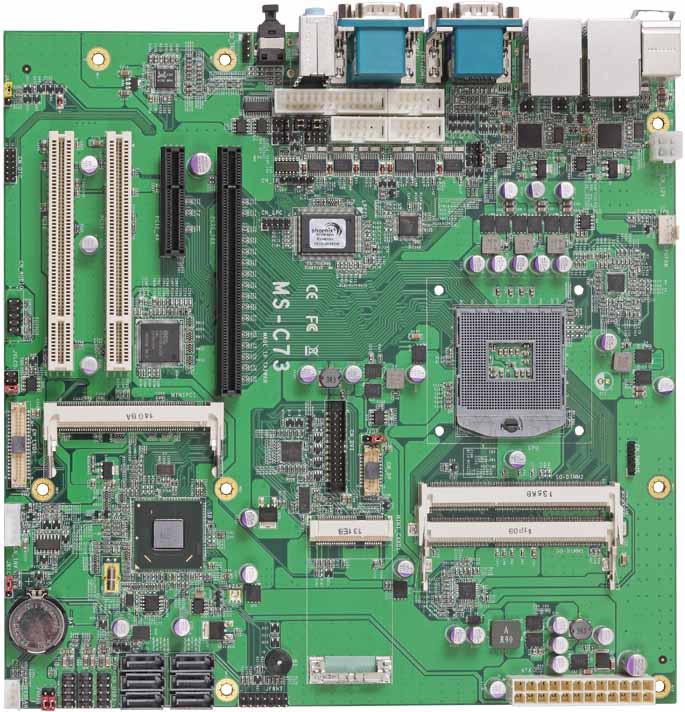

MS-C73


Support Intel® Core™ i7 / i5 / i3 / Mobile CPU with Mobile Intel®
QM57 Express,8GB DDR3, 2 x Giga LAN, 12 x USB 2.0, 6 x COM,
8 x SATA, HD Audio, LPT,PCI-Express X16/X4 slot, PCI slot ,
Mini-PCIe & Mini-PCI socket

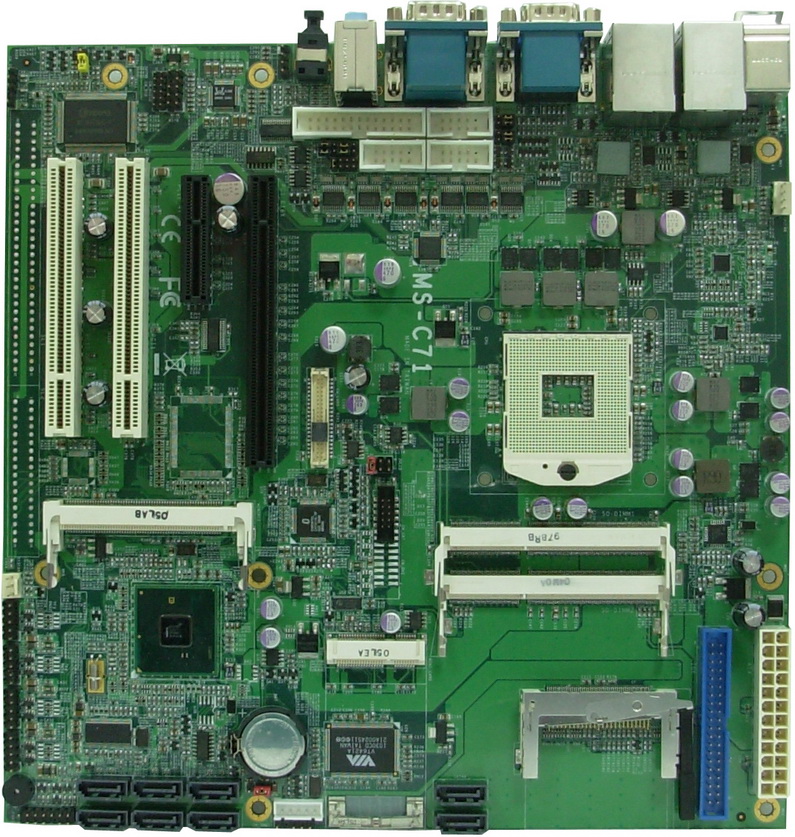

MS-C71


Intel® Core™ i7 / i5 / i3 LGA1156  MicroATX motherboard

Intel® Core™ i7 / i5 / i3 / Pentium® Desktop processor,
Intel® BD82Q57 PCH (Platform Controller Hub),
DDR3 1066/1333 MT/s up to 16 GB,Support VGA, DVI,
HD audio,2 x Gbit LAN, GPIO, PCIe X16/X4, 1x Mini PCIe,
1 x MiniPCI, 6 x SATAII (RAID 0, 1, 5, 10),
1 x RS232/422/485, 5 x RS232,1 x CDIN, 1 x IrDA, SMBus,
10 x USB2.0, SPDIF, LPT ,FDD, ATX PSU support

MS-C72


Intel® Core™2 Quad /  Core™Duo microATX Motherboard

Intel® CoreTM 2 Quad/CoreTM 2 Duo/Celeron, FSB 800/1066/1333MHz, LGA775,
Intel® Q45 & ICH10DO, DDRIII 800/1066 SDRAM up to 8GB, Onboard VGA,
Onboard 2 x Intel® Gigabit LAN, HD Audio, 12 x USB, 6 x SATAII with RAID,
6 x COM, 1x ISA, 2 x PCI, 1 x mini-PCI, one x16 PCI-E & one x4 PCI-E

P4ELA


Intel Pentium 4 / Celeron Flex ATX Motherboard

Intel Pentium 4 / Celeron  @ PGA-478 socket, up to 3.0GMHz FSB
Intel® 845GV & ICH4 Chipset
2 x 184-pin DDR up to 2.0 GB,
Integrated Intel Extreme Graphics VGA Interface
10/100M bits/s Ethernet LAN , 2 COM , 6 USB2.0
LPT , RJ45 LAN , Audio , 2 x 32-bit PCI slots,
1 x FDD, 1 x SPDIF

特价P8F154PL


Intel® CoreTM  2 Duo ( Meron) @ 800 MHz FSB .
Intel® GME965 & ICH8M Chipset .
DDRII 533/667 MHz up to 3.0 GB .
Onboard VGA , LVDS , HDTV ,
2 x Gigabit LAN , 6 COM , 10 USB2.0 , SATA , GPIO
LPT , SPDIF , IrDA , FDD , HD Audio , 2 IEEE1394
Mini-PCI & CompactFlask Socket ,
PCI-Express X16 , PCI-Express X4 , 2 x PCI and ISA slots


PMSA


Intel® CoreTM 2 Quad / CoreTM 2 Duo Desktop , 533/800/1066 MHz FSB
Intel® Q965 & ICH8DO , DDRII up to 8.0 GB , Onboard VGA ,
Onboard 2 x Intel® Gigabit LAN , HD Audio , 10 x USB 2.0 , 6 x SATAII , 6 x COM ports ,
1 x PCI-Express X16 , 1 x PCI-Express X4 ,
1 x Mini-PCI , 4 x PCI slots , 2 x ISA slots

P4BWA


LGA 775 for Intel  CoreTM  2 Duo / Pentium D CPU
FSB 533 / 800 / 1066 MHz .
Intel 945G & ICH7R Chipset .
Onboard VGA , Gigabit LAN , HD Audio , SATA II
6 COM , 6 USB2.0 , SPDIF , 8-bit GPIO , LPT , IrDA
CompactFalsh and DOC socket .
PCI-Express x16 / x4 / x1 ,  4 PCI and 1 ISA

P4LA


Intel CoreTM  2 Duo / Core Duo  @ 533/667 MHz FSB .
Intel 945GME & ICH7M Chipset .
DDRII 533/667 MHz up to 3.0 GB .
Onboard VGA , LVDS , HDTV ,
2 x Gigabit LAN , 6 COM , 8 USB2.0 , SATA , GPIO LPT , SPDIF , IrDA , FDD , HD Audio,
Mini-PCI & CompactFlask Socket ,
PCI-Express 16x , PCI-Express x1 , PCI and ISA slot

PMCA


Pico-ITX 10×7.2
Rockchip RK3128 Quad-core Cortex-A7 Processor.
Onboard DDR3, HDMI, LVDS, CVBS, LAN, USB 2.0, Audio, GPIO, WIFI ANT, SD, UART,
RTC, OTG, TP

LP-150


Intel® Apollo Lake Series Processor.
Onboard HDMI,  DisplayPort, LVDS, Gigabit LAN, USB3.0 & 2.0, HD Audio, LPC,
PCIE Mini card, mSATA

LP-177


Intel® Skylake/Kaby Lake(6th/7th)  U-series Processor.
Onboard HDMI, LVDS, Gigabit LAN, USB3.0 & 2.0, HD Audio, LPC, PCIe Mini card, mSATA

LP-175


Intel® Braswell series Processor.
Onboard HDMI, LVDS, Gigabit LAN, USB3.0 & 2.0, HD Audio, LPC, PCIE Mini card, mSATA

LP-176


Pico-ITX with Intel® Intel® Broadwell (5th) / Haswell (4th) Core™ U-series Mobile processor

Pico-ITX with Intel® Broadwell (5th) / Haswell (4th) Core™ U-series
Mobile processor.Intel® 5th/4th Gen integrated HD Graphics.
Support one DDR3L 1333/1600 SO-DIMM up to 8GB
Onboard Display Port, DVI, LVDS, Intel® Gigabit LAN , HD Audio, SATA3, 2 x COM , 2 x USB2.0 , 2 x USB3.0, SMBUS, LPC,
DC 9~24V input, 1 x PCIe mini card  or mSATA socket

LP-174


Intel® CeleronTM  J1900 / N2930 and AtomTM E3845 Bay Trail Mobile Processor
Onboard DVI, LVDS, CRT, Gigabit LAN, USB3.0 & 2.0, HD Audio, GPIO, LPC,
PCIE Mini card, mSATA

LP-173


Intel® AtomTM Processor D2550 or N2800, Onboard LVDS,
VGA, Giga LAN, USB2.0,HD Audio, SATA, PCIE Mini card socket,
DC 5V input

LP-172


Pico-ITX with onboard AMD Dual-core T56N 1.65 GHz Onboard AMD
Dual-core T56N 1.65 GHz,AMD A55E FCH chipset, DDR3 1066/1333
MHz up to 4.0 GB,Support VGA, LVDS or DVI, HD audio,
Intel® Giga LAN,1 x SATAII, 2 x RS232, 4 x USB2.0,
LPC Mini-PCIe socket, DC 5V input

LP-180


Pico-ITX with Intel® Atom™ Solution

Pico-ITX supports Intel® Atom™ processor,
Intel® SCH US15WP chipset
DDR2-667 SO-DIMM SDRAM up to 2.0 GB,nboard VGA or DVI , LVDS ,
Intel® Giga LAN, HD Audio ,2 x COM , 2 x USB2.0 , LPT , DC 12V input

LP-171


Pico-ITX with Intel® Atom™ dual-core Solution

Pico-ITX supports Intel® Atom™ D525/D510 dual-core processor
Intel® ICH8M system chipset
DDR2-667 SO-DIMM SDRAM up to 2.0 GB
Onboard VGA, LVDS, Intel® Giga LAN, Audio, COM, USB2.0

LP-170


Nano-ITX Motherboard 12X12
Support  Bay Trail  Intel® Celeron™ J1900 / N2930 and Atom™ E3845 mobile CPU, DDR3L up to 8GB, Onboard Display port & DVI, CRT , 2 x LVDS, 1 x Giga LAN, 3 x USB 2.0, 1 x USB 3.0, 6 x COM, HD Audio, 2 x SATAIl , 2 x SATAIII , GPIO , 1 x PCIE Mini card or mSATA , 1 x SIM socket.

LN-D70
