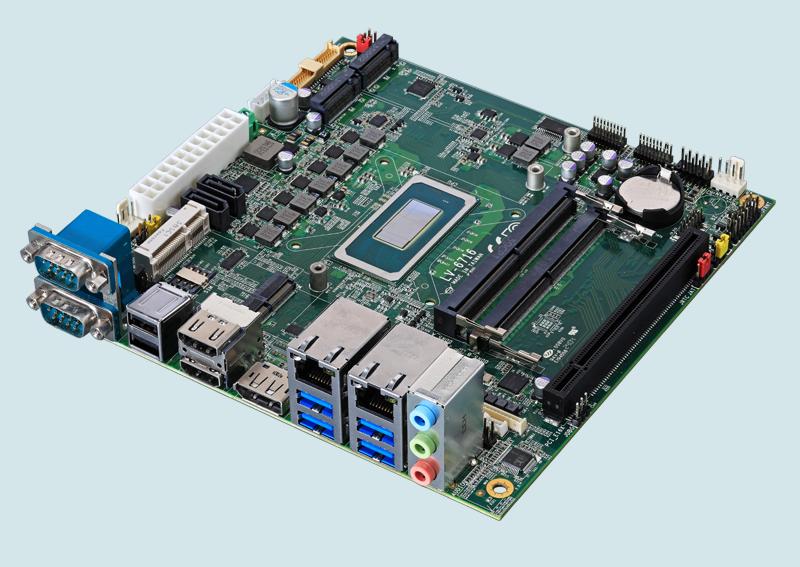

点击查看大图
|
Support Intel® Core™ Ultra Processors (Series 1) "Meteor Lake" Ultra H series. 2 x DDR5 up to 96 GB, onboard HDMI, LVDS, DisplayPort ++, 2 x SATA3, 3 x 2.5Giga LAN, HD Audio, 4 x USB 2.0, 4 x USB 3.2 Gen2, 2 x RS232/422/485, 4 x RS232, 1 x PCIe X16, 1 x Mini-PCIe with SIM slot (support mSATA), SMBus, GPIO, 2 x M.2 2280 (Key M), 1 x M.2 2230 (Key E)
| Overview | Feature | Specification |
Product Image
| Ordering Guide |
|
Datasheet (PDF format)
|
Manual
|
Driver
|
BIOS
| |
 |
|
|
 |
|
Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LV-6716 Mini-ITX embedded system board based with Intel® Core™ Ultra H processors. Support DDR5 memory (Two DDR5 SO-DIMM 5600 MHz up to 96GB).
The platform is based on Intel® Arc™ Graphics, Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. Displays can be connected via one LVDS, two HDMI, and one DP++, up to four displays can be controlled simultaneously support to provide its advanced solutions for imaging, machine vision and digital signage applications. LV-6716 offers lots of features including high-speed data transfer interfaces such as 4 x USB3.2 Gen2 and 2 x SATAIII, equipped with triple Gigabit Ethernet and comes with 4 x RS232 and 2 x RS232/422/485, 4 x USB2.0, Intel® HD Audio, and 2 x M.2 (Key M 2280), 1 x M.2 (Key E 2230), 1 x MiniPCIe socket with SIM slot (support mSATA), 1 x PCIe X16 slot. |
|
|
|
 |
|
|
 |
 |
|
|
|
|
|
-
CPU: Intel® Core™ Meteor Lake Ultra Processors FCBGA2049 package.
-
Memory: 2 x DDR5 SO-DIMM 5600MHz up to 96GB.
-
DisplayPort interface: Onboard DisplayPort ++ connector.
-
LVDS interface: Onboard LVDS connector.
-
HDMI interface: Onboard HDMI connector.
-
LAN Interface: 3 x LAN.
-
Serial ATA: 2 x SATA3.
-
Audio: Realtek ALC888S HD Audio.
-
Internal I/O: 2 x SATA3, 4 x RS232, 2 x USB2.0, 1 x GPIO, 1 x SMBus, 1 x LAN, 1 x Audio, 1 x LCD inverter, 1 x LVDS, 1 x EDP(Note2).
-
Rear I/O: 4 x USB3.2 Gen2, 2 x USB2.0, 2 x LAN, 2 x RS232/422/485, 1 x Audio, 2 x HDMI, 1 x DisplayPort ++.
-
Expansion: 1 x PCIE X 16 slot, 1 x MiniPCIe with SIM slot (support mSATA)(Note1), 2 x M.2 (Key M), 1 x M.2 (Key E).
-
GPIO interface: 8-bit Digital I/O interface.
-
External Audio: Line-in, Line-out, MIC-in.
-
Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or DC 9~35V full range support. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Form Factor |
Mini-ITX Motherboard |
|
Processor |
Intel® Core™ Meteor Lake Ultra Processors
Package Type: FCBGA2049 |
|
Memory |
2 x DDR5 SO-DIMM 5600 MHz up to 96GB, support Non-ECC, unbuffered memory |
|
Real Time Clock |
Chipset integrated RTC with onboard lithium battery |
|
Watchdog Timer |
Generates a system reset with internal timer for 1min/s ~ 255min/s |
|
Serial ATA Interface |
2 x Serial ATA3 interface up to 600MB/s |
|
LVDS Interface |
Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply |
| DisplayPort Interface |
Onboard DisplayPort ++ connector |
|
Audio Interface |
Realtek ALC888S HD Audio |
|
LAN Interface |
1 x Intel® I226-LM Gigabit LAN (Up to 2.5GbE)
2 x Intel® I226-V Gigabit LAN (Up to 2.5GbE) |
|
GPIO Interface |
Onboard programmable 8-bit digital I/O interface |
|
Expansion |
1 x MiniPCIe with SIM slot (support mSATA) (Note1)
2 x M.2 Key M 2280 support PCIe Gen4 for NVMe
1 x M.2 Key E 2230 for Wi-Fi and Bluetooth
1 x PCIE X 16 slot support PCIe Gen5 X8 |
|
Internal I/O Port |
2 x SATA3, 4 x RS232, 2 x USB2.0, 1 x GPIO, 1 x SMBus, 1 x LAN,
1 x Audio (MIC-in & Line-out), 1 x EDP(Note2), 1 x LCD inverter,
1 x LVDS. |
|
Rear I/O Port |
4 x USB3.2 Gen2, 2 x USB2.0, 2 x LAN, 2 x RS232/422/485, 2 x HDMI, 1 x DisplayPort ++, 1 x Line-in, 1 x Line-out, 1 x MIC-in |
|
Power Requirement |
Standard 24-pin ATX power supply (20-pin is compatible)
or DC 9~35V full range support |
|
Board Dimension |
170 mm x 170 mm (L x W) |
|
Temperature |
Operating within 0 ~ 60°C (32°F ~ 140°F)
Storage within -20 ~ 80°C (-4°F ~ 176°F) |
|
Relative Humidity |
10% ~ 90%, non-condensing |
Note1: mSATA and SATA2 can't use at the same time.
Note2: HDMI(B) and EDP can't use at the same time. |
|
|
|
|
|
|
|
|
|
|
