 LP-17B |
首页 > 产品介绍 |
|
|
 |
|
|
 |
|

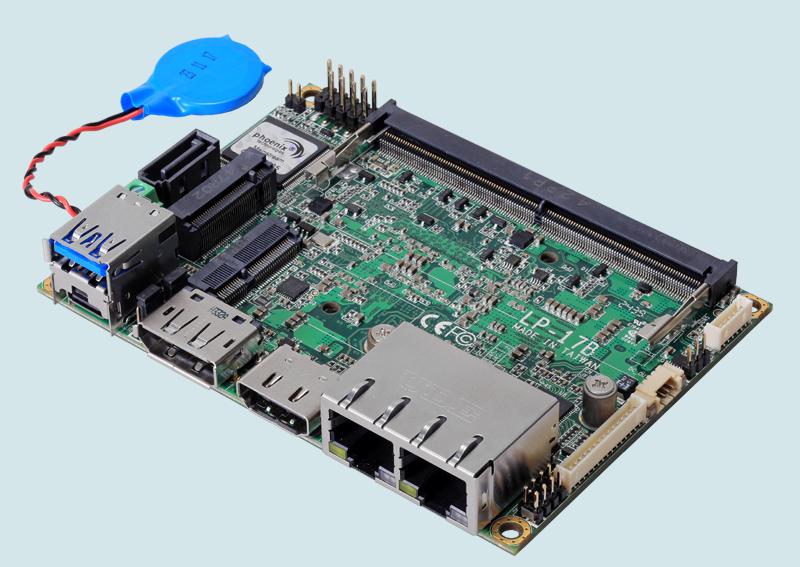

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Pico-ITX form factor LP-17B consists of the Intel® Core™ Meteor Lake Ultra U processors, combined with the Intel® Express chipset, Integrated Intel® Graphics Technology. The COMMELL LP-17B platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.
The LP-17B Pico-ITX Motherboard is designed for Intel® Core™ Meteor Lake Ultra U processors supporting one DDR5 SO-DIMM up to 48GB and running 5600 MHz No ECC function. The platform is based on Intel® Graphics Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LP-17B integrated HDMI, Type-C (DisplayPort Alt.Mode) for triple display supports to provide its advanced solutions for imaging, machine vision and digital signage applications.
LP-17B offers lots of features including high-speed data transfer interfaces such as 1 x USB 3.2 Gen2, equipped with two 2.5 Gigabit Ethernet and it comes with 1 x RS232/RS422/RS485, 2 x USB2.0, Intel® High Definition Audio, one M.2 (Key E 2230) and one M.2 (Key M 2280). |
|
|
|
 |
|
|
 |
 |
|
|
|
|
|
-
CPU: Intel® Core™ Meteor Lake Ultra Processors FCBGA2049 package
-
Memory: 1 x DDR5 5600 SO-DIMM up to 48GB
-
Integrated Graphics: Intel® Graphics
-
DisplayPort : Onboard DisplayPort++ connector, Type-C (DP Alt.Mode).
-
HDMI interface: Onboard HDMI connector
-
Header for LVDS: 15-pin connector (Add ADP-3460 supports LVDS)
-
Serial ATA: Support 1 x SATA3 with 600MB/s (6Gb/s) transfer rate
-
Audio: Realtek ALC888S HD Audio
-
LAN Interface: 1 x Intel® i226-LM Gigabit LAN (up to 2.5GbE), 1 x Intel® i226-V Gigabit LAN(up to 2.5GbE).
-
Extended interface: 1 x M.2 2230 (Key E) for Wi-Fi and Bluetooth, 1 x M.2 2280 (Key M) support PCIe Gen4 for NVMe or SATA.
-
Internal I/O: 1 x SATA3, 2 x USB2.0, 1 x RS232/RS422/RS485, 1 x Audio Amplifier, 1 x GPIO, 1 x Header for eDP or LVDS (Add ADP-3460 supports LVDS)
-
Rear I/O: 2 x LAN, 1 x USB 3.2 Gen2, 1 x DisplayPort++, 1 x Type-C (DP Alt.Mode), 1 x HDMI
-
Power: DC input 12V ± 5% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Form Factor |
Pico-ITX Motherboard |
|
CPU |
Intel® Core™ Meteor Lake Ultra Processors FCBGA2049 package |
|
Memory |
1 x 262-pin DDR5 5600 SO-DIMM up to 48GB |
|
Real Time Clock |
Chipset integrated RTC with lithium battery |
|
Watchdog Timer |
Generates a system reset internal timer for 1min/s ~ 255min/s |
|
Integrated Graphics |
Intel® Graphics |
|
Serial ATA Interface |
1 x SATA3 with 600MB/s (6Gb/s) transfer rate |
|
Audio Interface |
Realtek ALC888S HD Audio |
|
LAN Interface |
1 x Intel® i226-LM Gigabit LAN (up to 2.5GbE)
1 x Intel® i226-V Gigabit LAN (up to 2.5GbE) |
|
Expansion Interface |
1 x M.2 2230 (Key E) for Wi-Fi and Bluetooth
1 x M.2 2280 (Key M) support PCIe Gen4 for NVMe or SATA |
|
Internal I/O |
1 x SATA3, 1 x RS232/RS422/RS485, 1 x Audio Amplifier, 2 x USB2.0, 1 x GPIO, 1 x Header for eDP or LVDS (Add ADP-3460SMB supports LVDS) |
|
Rear I/O |
2 x LAN, 1 x USB 3.2 Gen2, 1 x HDMI, 1 x DisplayPort++, 1 x Type-C (DP Alt.Mode) |
|
Power Requirement |
DC input 12V ± 5% |
|
Size & Thickness |
100mm x 72mm (L x W) |
| Temperature |
Operating within 0°C ~ 60°C (32°F~140°F)
Storage within -20°C~ 80°C (-4°F~176°F) |
|
Relative Humidity |
10%~90%, non-condensing | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LP-17B7 |
With Ultra 7 165U + Cooler fan, support HDMI, DP ++, Type-C (DP Alt.Mode), Header for LVDS (Note) |
|
Note: Add ADP-3460 supports LVDS. | |
|
|
|
|
|
|
|
|
|
