CMB-370 首页 > 产品介绍


点击查看大图

Fanless barebone system with COMMELL 3.5" SBC LE-370 &  80W adapter


| Overview | Feature | Specification | Product Image | Ordering Guide |
| Datasheet (PDF format) | Manual | Driver | BIOS |


Overview

Feature


Specification
Form Factor Fanless barebone system
3.5" Board   Inside Motherboard can be :
 LE-374          :LE-374 with onboard Intel Atom N270(1.6GHz)
 LS-371U25    : LS-371 with onboard Intel U2500 CPU
 LE-370PM14 : LE-370 with onboard P-M 1.4 GHz CPU
 LE-370CM6   : LE-370 with onboard C-M 600 MHz CPU
 LE-365D        : LE-365D with onboard VIA Eden 1.0 GHz
 LE-365E5D    : LE-365E5D with onboard VIA Eden 500 MHz
Drive Bay  Internal 1 x 2.5" HDD
Riser card  No
Front Panel  System Reset switch
 Power On/Off
 HDD LED for activity
Mounting  Wall mounting / Desk
Rear Side I/O
 Depend on 3.5 SBC rear IO
Environment  Operating Temperature: 0 ~ 40C
Power supply  DC input for DC jack
Dimension  195 x 110 x 80 mm
Weight  Approx. 1.41 kg (Without HDD)

Ordering Guide

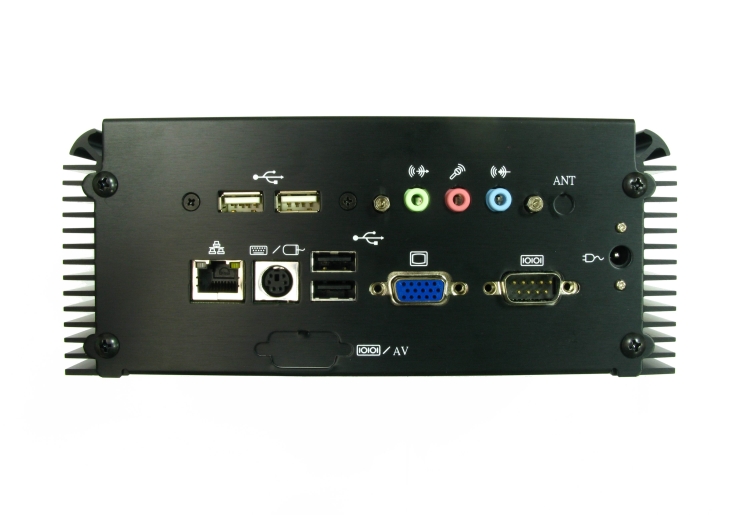

CMB-374 Barebone with LE-374 and SPD-080-12, But without DVI
CMB-371U25  Barebone with LS-371 & U2500 CPU and SPD-080-12
CMB-371DU25  The same as CMB-371U25 but with DVI output in the rear IO plate

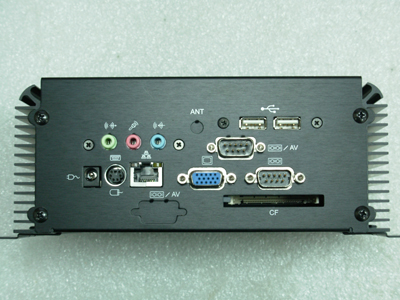

CMB-370PM14  Barebone with LE-370 & Intel P-M 1.4 CPU and SPD-080-12
CMB-370CM6  Barebone with LE-370 & Intel C-M 600 CPU and SPD-080-12

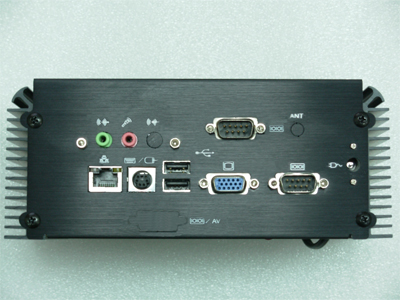

CMB-365  Barebone with LE-365D and SPD-080-12, But without DVI
CMB-365E5  The same as CMB-365, but change CPU to VIA Eden 500 MHz CPU

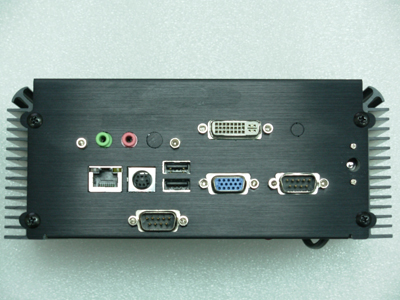

CMB-365D  The same as CMB-365 but with DVI output in the rear IO plate
CMB-365E5D  The same as CMB-365D, but change CPU to VIA Eden 500 MHz CPU
