CMB-37E 首页 > 产品介绍

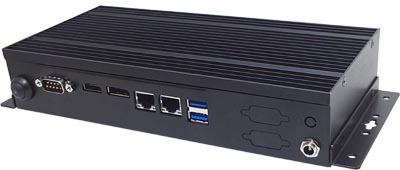

点击查看大图

Mini barebone system support  Intel® Core™  i7/ i5/i3 Mobile processor


| Overview | Feature | Specification | Product Image | Ordering Guide |
| Datasheet (PDF format) | Manual | Driver | BIOS |


Overview
COMMELL's CMB-37E is a high-performance Fanless barebone systems which support Intel® Broadwell (5th) / Haswell (4th) Core™ Mobile U-series processor, CMB-37B is suitable for industrial application like industrial  control and automation, retail, gaming, print imaging .......

Feature

System

Processor

Intel® Broadwell/Haswell Core™ i7, i5, i3, Celeron U-series Processor,FCBGA1168, TDP 15W

Chipset

Wildcat Point-LP

Memory

1 x DDR3L SO-DIMM 1333/1600 MHz up to 8GB, Support Non-ECC, unbuffered memory only

Watchdog Timer

Generates a system reset with internal timer for 1 min/s ~ 255 min/s

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Expansion

2 x MiniPCIe(support mSATA) and Card2 half-size choosable,

1 x SIM slot

Graphics

Chipset

Intel® Gen 8/7.5 integrated HD Graphics

Display Interface

1 x HDMI, 1 x DisplayPort, Support dual display

LAN

Chip

1 x Intel® I210-AT Gigabit LAN

1 x Intel® I218-LM Gigabit LAN (Support iAMT10)

I/O

Storage

1 x 2.5 inch SATA3 HDD/SSD Bays, 2 x mSATA

Front Panel

2 x USB2.0, 1 x Min-in, 1 x Line-out

Rear Panel

1 x HDMI, 1 x DP, 2 x LAN, 2 x USB3.0, 1 x COM,

Power Button, 1 x DC input

Extend I/O

2 x COM, 1 x Antenna

Mechanical & Environmental

Power Requirement

DC Input 9~24V

Construction

Heavy-Duty steel

Mounting

Desk/Wall mounting, VESA mounting(MIS-D 75/ 75 mm × 75 mm/ M4 and MIS-D 100/ 100 mm × 100 mm/ M4)

Size & Thickness

225mm x 45mm x 107 (L x W x H)

Weight

1.1 kg

Temperature

Operating within 0°C~40°C (32°F~104°F)

Storage within -20°C~80°C (-4°F~176°F)

Relative Humidity

0%~90% @ 40°, non-condensing


Specification

Ordering Guide

Standard

Intel® 5th/4th Gen Core™ U-series Processor, 2 LAN, HDMI, DisplayPort, USB2.0, USB3.0, MiniPCIe, 2.5” SATA3 HDD Bay, mSATA, Audio, COM, DC in

Ordering code

CMB-37E7L2: i7-5650U Processor with 12V/84W Adapter

CMB-37E5L2: i5-5350U Processor with 12V/84W Adapter

CMB-37E3L2: i3-5010U Processor with 12V/84W Adapter
